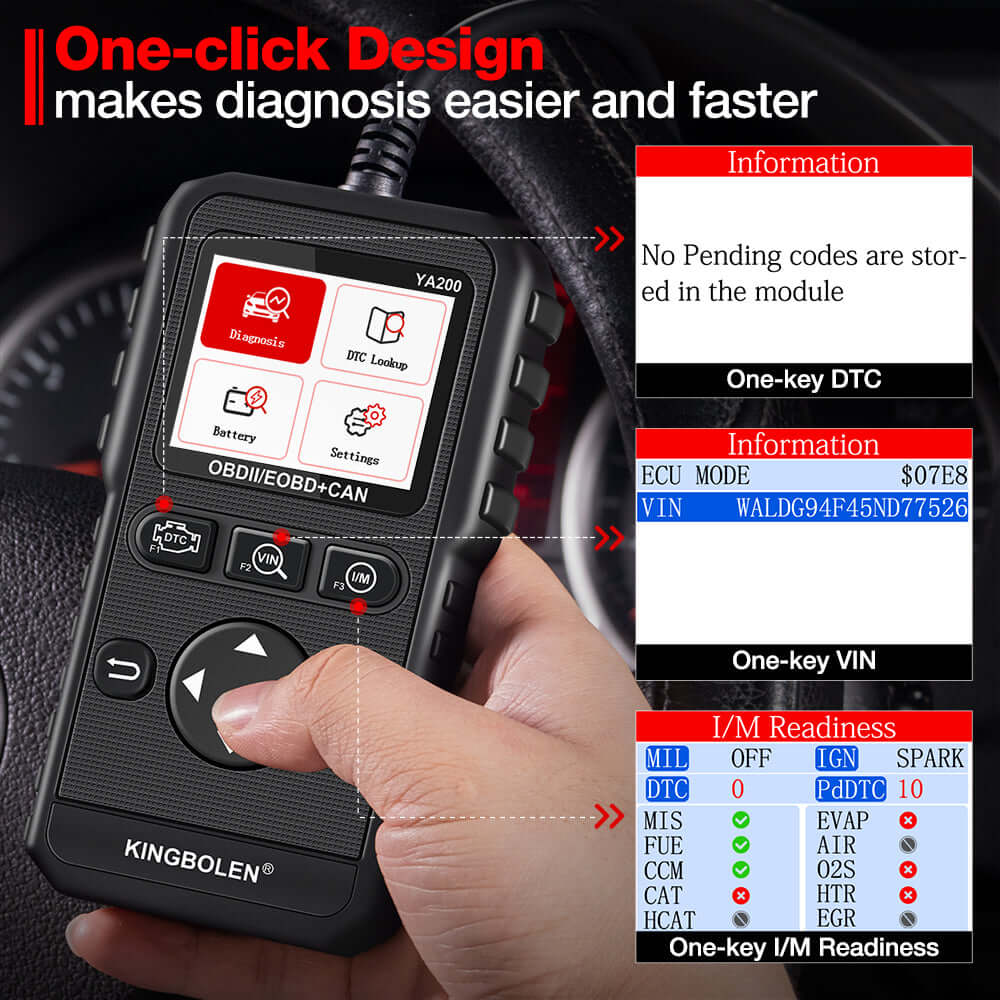

Hot Keys:

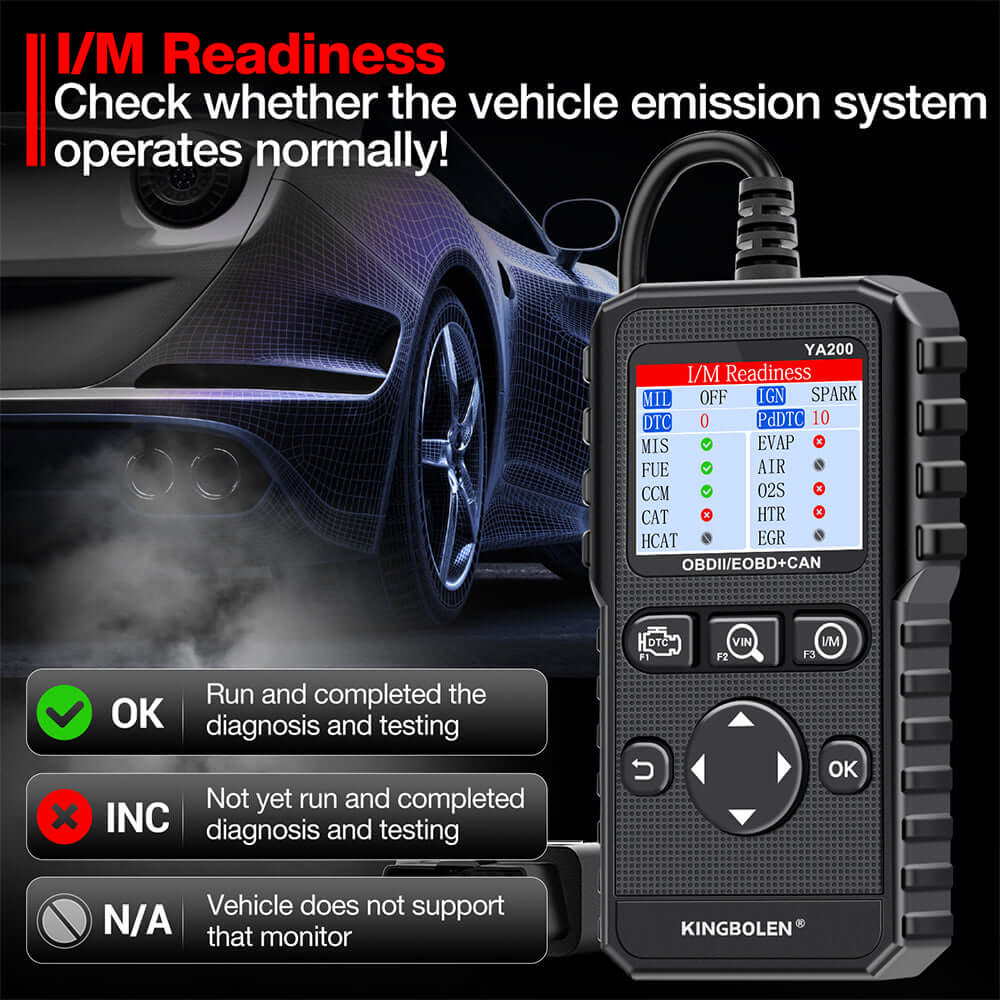

One-click I/M Readiness: Quick checks emission readiness status and drive cycle status
One-click DTC: Looks up definitions of Pending Codes stored in the scan tool and shows the possible causes of the DTC(Not every DTC with possible causes reason).
One-click VIN: Displays the vehicle's identification number.

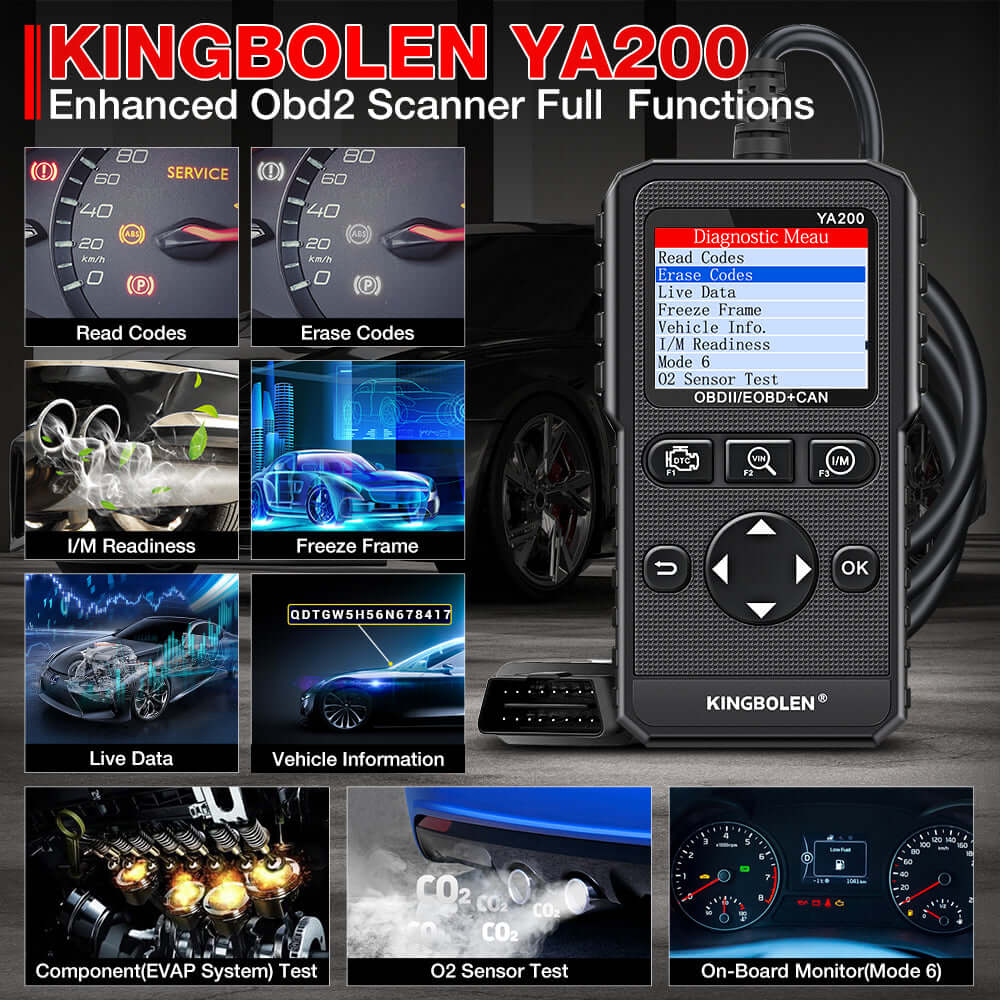

The KINGBOLEN YA200 Code Reader meets the following protocols:
① SAE J1850 PWM (41.6 Kbaud)
② SAE J1850 VPW (10.4 Kbaud)
③ ISO 9141-2 (5 baud init, 10.4 Kbaud)
④ ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
⑤ ISO14230-4 KWP (fast init, 10.4 Kbaud)
⑥ ISO15765-4 CAN (11bit ID, 500 Kbaud)
⑦ ISO15765-4 CAN (29bit ID, 500 Kbaud)
⑧ ISO15765-4 CAN (11bit ID, 250 Kbaud)
⑨ ISO15765-4 CAN (29bit ID, 250 Kbaud)
NOTE: Not for FIAT models.
Specifications:
- Screen Size: 2.4 inches
- Display: 320x240 pixel display with TFT color screen.
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- External Power: 9.0V to 16.0V power provided via vehicle battery
- Product Size: 137 × 79 × 22 mm (5.4"×3.1"×0.9")
-
