Xhorse KM+IMMO Tool For VAG By OBD2 V1.8.2 Latest Version With Multi languages

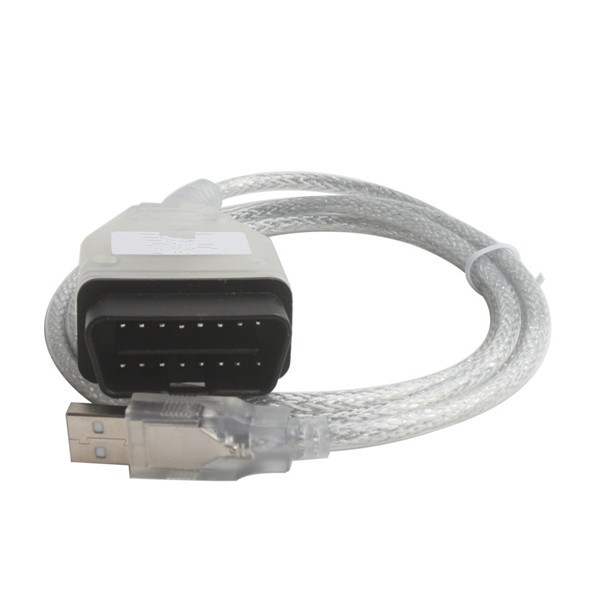

Xhorse KM+IMMO tool for VAG by OBD2
1.It supports odometer correction, PIN code read, EEPROM read/write with VAG KM+IMMO tool by OBD2.
2.can program Volkswagen ,seat and Skoda cars from year 2006.06 by OBDII diagnostic.

:Xhorse KM+IMMO Tool
:
:

Special Price: $487.003% 3%

Regular Price: $499.99

:
Buy It Now

Details

Xhorse KM+IMMO Tool  For VAG By OBD2 V1.8.2 Latest Version With Multi languages

Note:
Require Firmware V2.0.5 or Above. Please Update Firmware to V2.0.5 Before Using it
Multi-language supported,including English,Spanish and Chinese.

New Update Version: V1.8.2
Add NEC24c32 & NEC24c64 algos (some algos for Amarok)
Fix bug of km correction on A4/Q5
Add 95320 immo function.

Update Version: V1.7.9
Add Passat B7 Color TFT Dash immo and key function support.
(Free for customers who have NEC24C64 authorization)

Update Version: V1.7.7
Add NEC95320 support. (11' Golf, 11' Tiguan)

Update Version: V1.7.4
Fix bug of change km on A3/TT

Update Version:: V1.7.3
Fix bug of change km on A4.
Fix bug of communication with car.

Update Version: V1.6.9
Add algo for NEC24c64

Update Version: V1.6.8
Add Change Immo State function for RB8.
Fix a problem of change km on A3/TT.

Update Version: V1.6.7
Require firmware V2.0.3 or above
Fix a problem of change km on some RB8 dash. RB8 authorization is free for those customer who purchase VAG KM+IMMO tool.

Update Version: V1.6.6
Add function: AUDI A3,TT
Fixed the problem of can't change km with A5,Q5,A4. You need purchase authorization for it, and it can do audi only after 2008.

Free RB8 Authorization for VAG KM+IMMO Tool Customers

Thanks for your support, we'll authorize RB8 for free to customers who has purchased CDC32 & Moto & NEC24c32 modules.If follow 3 items are all "Yes" in your "Device Info", you'll get RB8 authorization for free.
CDC32xx : Yes
Moto MM7 (Golf6,Tiguan) : Yes
NEC24C32 : Yes
Please update your device to get the authorization.

Notice
There is a problem in HID driver code of original VAG IMMO K+CAN TOOL and CDC32xx cables, when you upgrade the device,may cause data loss to device,and resulting device not work. We have released a new version to solve this problem, we add 4th generation key functions to show our regret. we suggest you to upgrade as soon as possible to solve this problem. If damage occurs during the upgrade process,please send the product back to the original manufacturers for repair and send back to you,but we do not bear the freight.

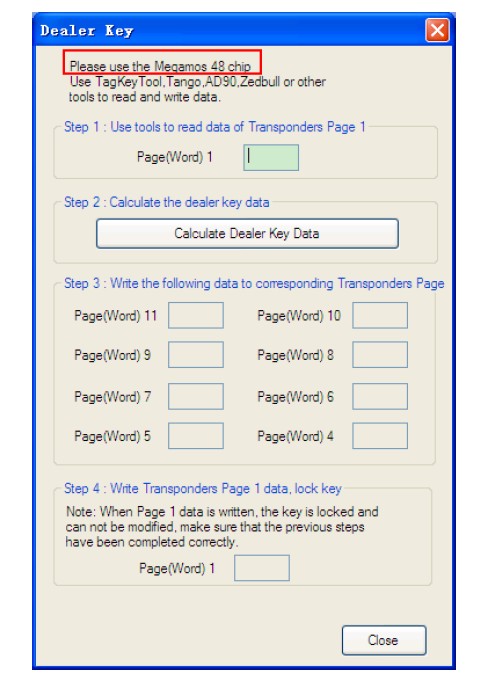

Newest Added Function: VAG KM+IMMO Tool Process of Adding Dealer Key with Tango

1. Condition 1: At least one key can be used.
1) Connect "VAG KM+IMMO TOOL" to both PC and car.
2) Click "EEPROM" button, read EEPROM and save it for backup.
3) Click "Dealer  Key" button ,opel "Dealer key" Dialog.
4) Use the prompt key chip to make key.
NEC24C32 and NEC24C64; Megamos 48
CDC VW: TP23
CDC AUDI: TP25
CDC SKODA: TP24
CDC SEAT: TP22

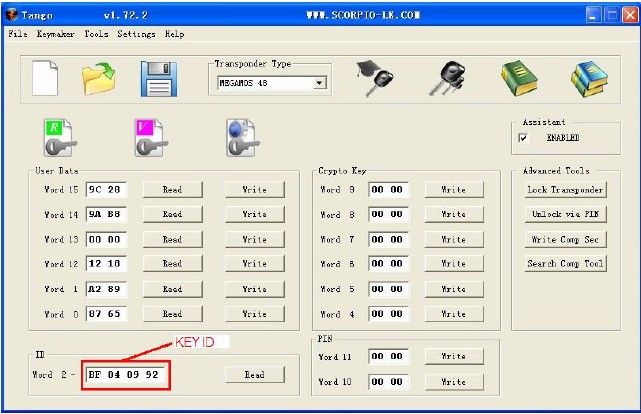

VAG KM+IMMO Tool Process of Adding Dealer Key with Tango 1
5) Switch to Tango, read "Word 1" data and "Key ID" data.

VAG KM+IMMO Tool Process of Adding Dealer Key with Tango 2

CDC32xx Module Options

Supported Cars:

Golf, Golf+ from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Passat B6  from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
EEPROM read/write;
Bora, Jetta  from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Touran  from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Caddy   from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write;
Tiguan, Eos  from year 2008+: odometer correction, PIN code read, EEPROM read/write;
Octavia  (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM):
odometer correction, PIN code read, EEPROM read/write

NEC 24C32 Module Options

Supported Cars:

VW Golf 6 - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW Passat , Passat CC - 2009+ with NEC and 24C32 EEPROM - odometer programming  by OBDII;
VW Tiguan - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW T5 - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW Polo  - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda Octavia 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda SuperB - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda Roomster, Yeti - 2009+ with NEC and 24C32  EEPROM - odometer programming and immobiliser data read  by OBDII;
Seat Ibiza - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW Multivan  - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW EOS  - 2009+ with NEC and 24C32 EEPROM - odometer programming  by OBDII;
VW Caddy - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW Scirocco - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW Bora   - 2010+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
VW Jetta  - 2010+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda Fabia 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda Altea - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda Yeti - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda Altea - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;
Skoda Exeo - 2009+ with NEC and 24C32 EEPROM - odometer programming and immobiliser data read  by OBDII;

GOLF6 MM7  Module Options

Suppoted Cars:


VW Golf 6 - 2010 with MM7 (9S12) EEPROM - odometer programming and immobiliser data read  by OBDII;
VW Tiguan - 2010+ with MM7 (9S12) EEPROM - odometer programming and immobiliser data read  by OBDII;

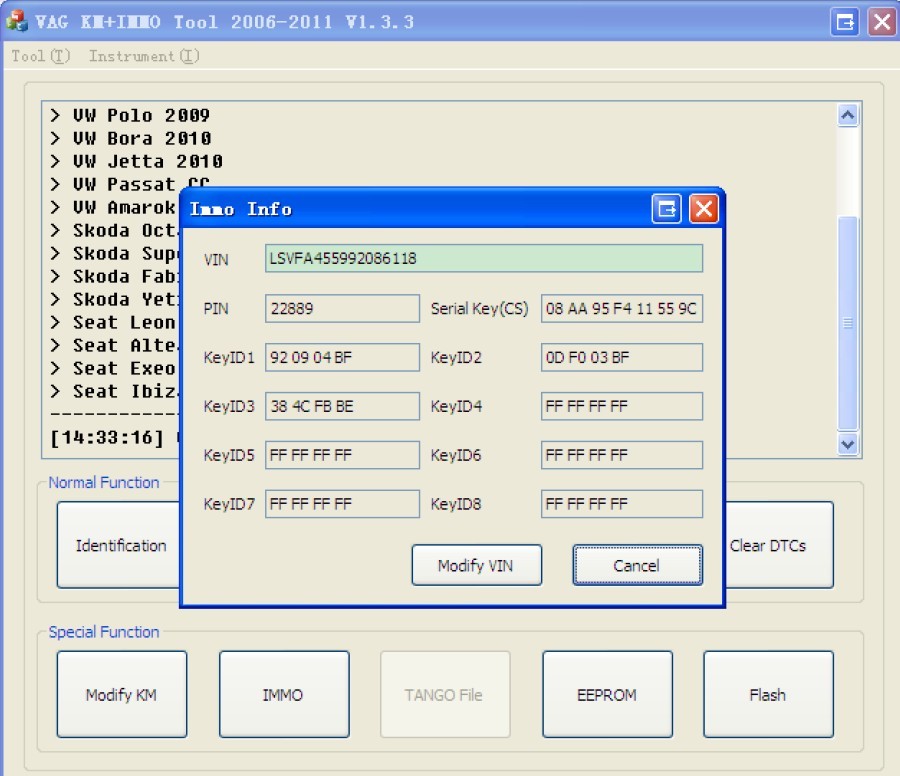

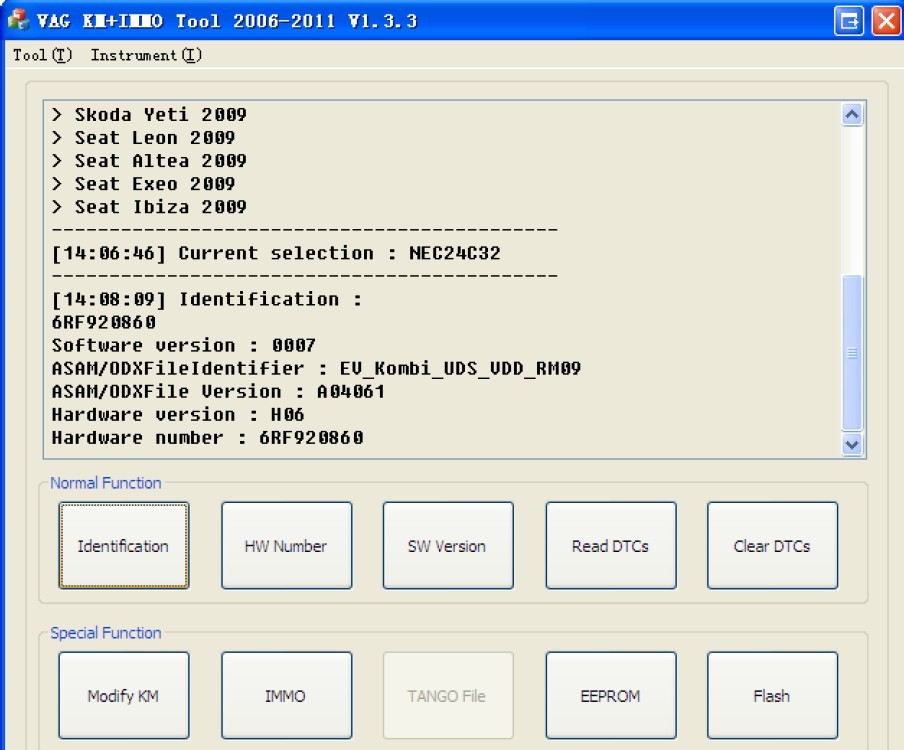

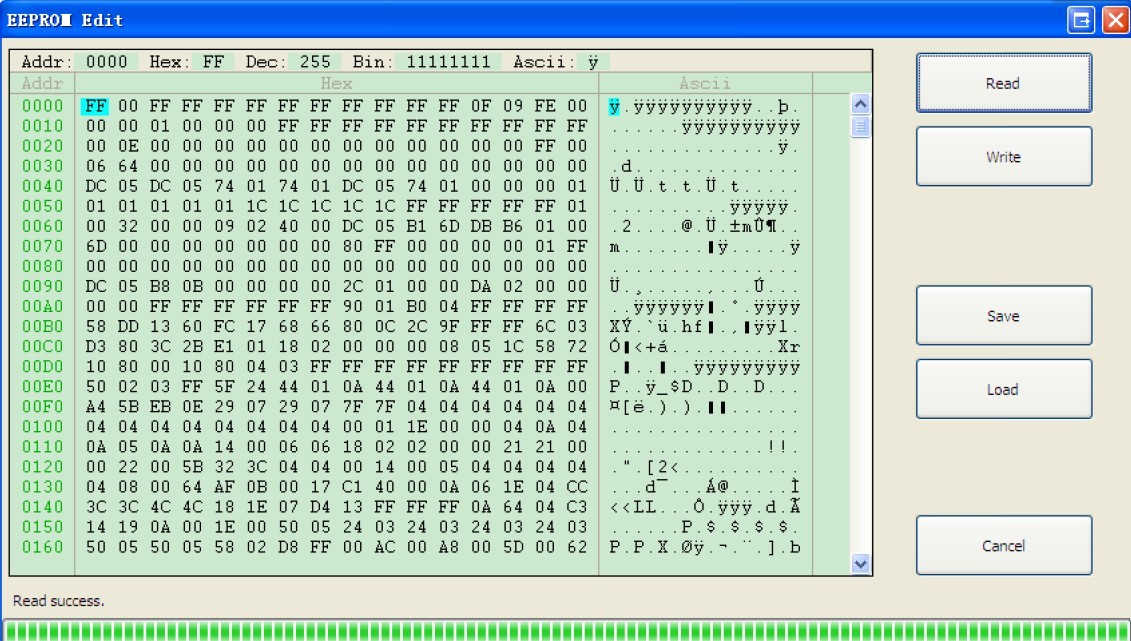

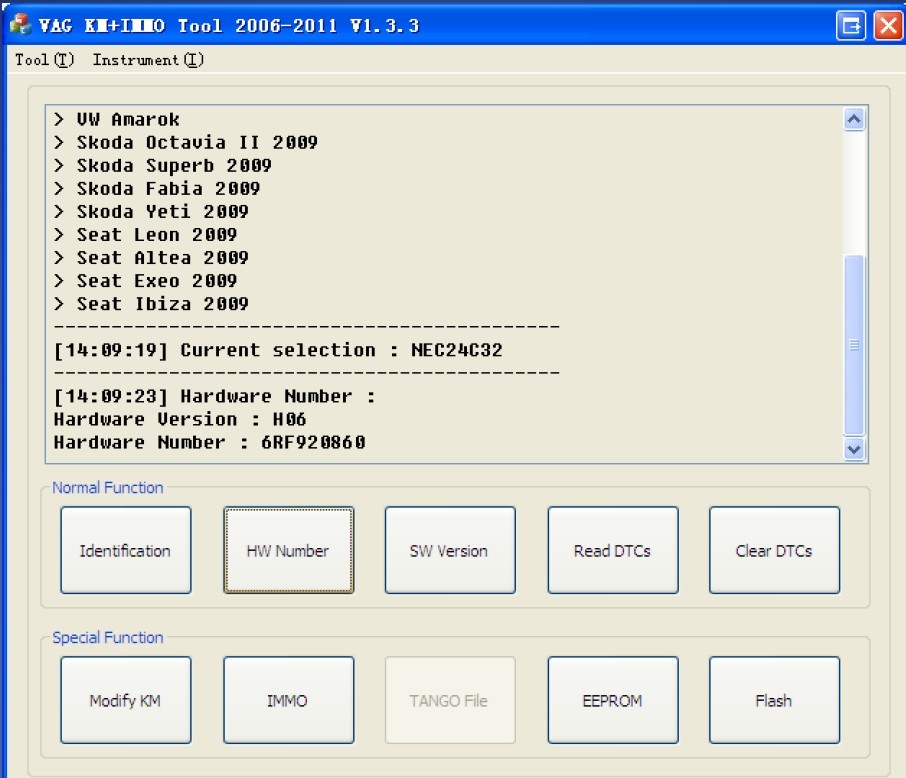

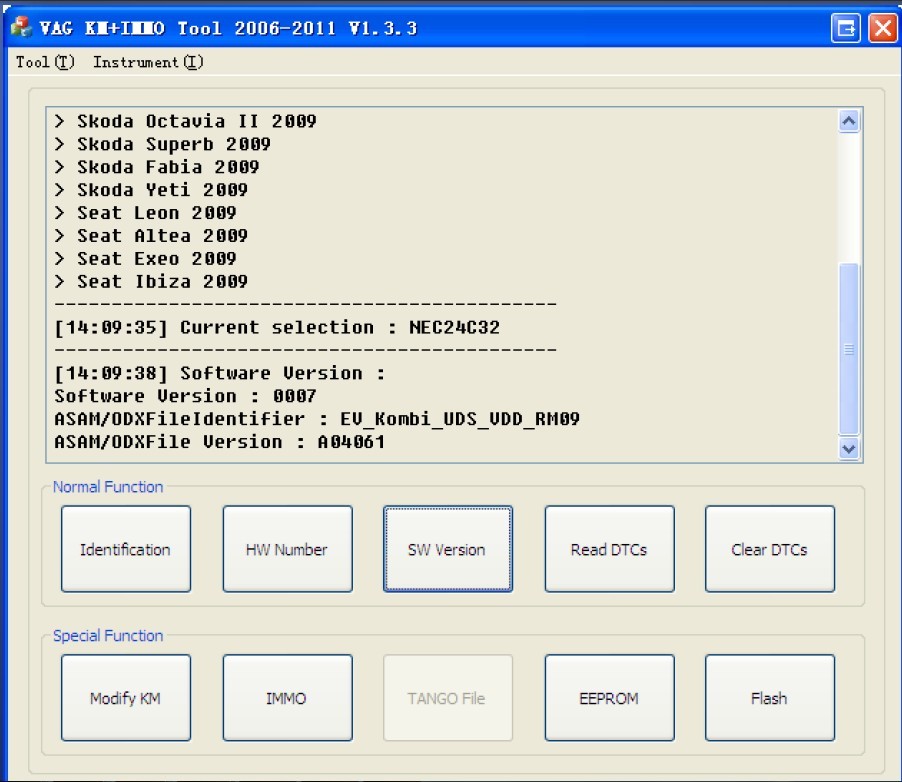

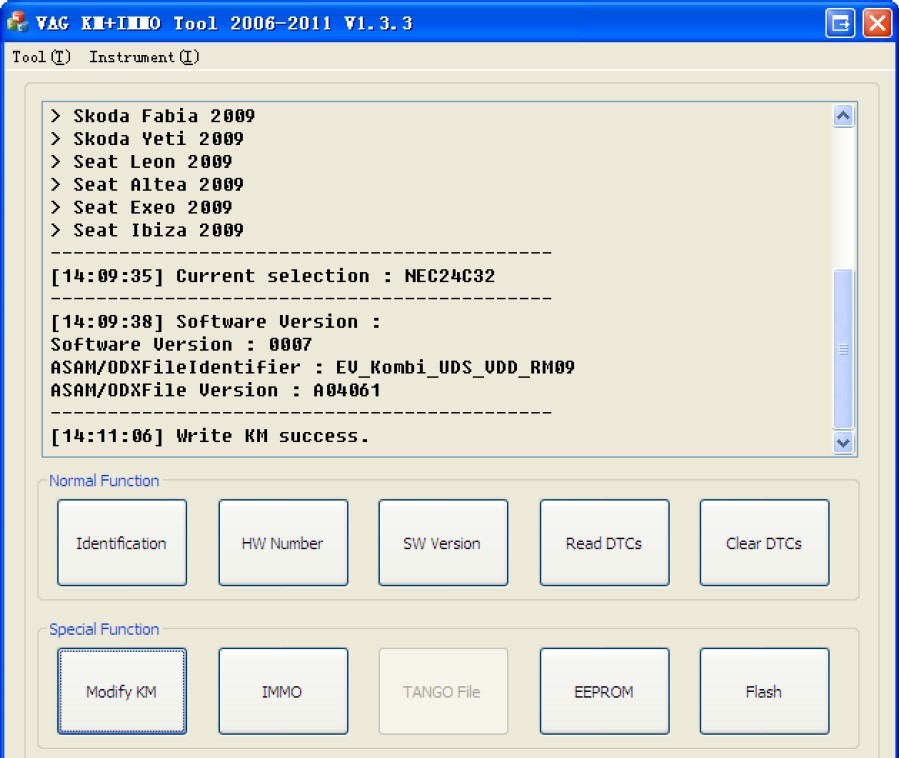

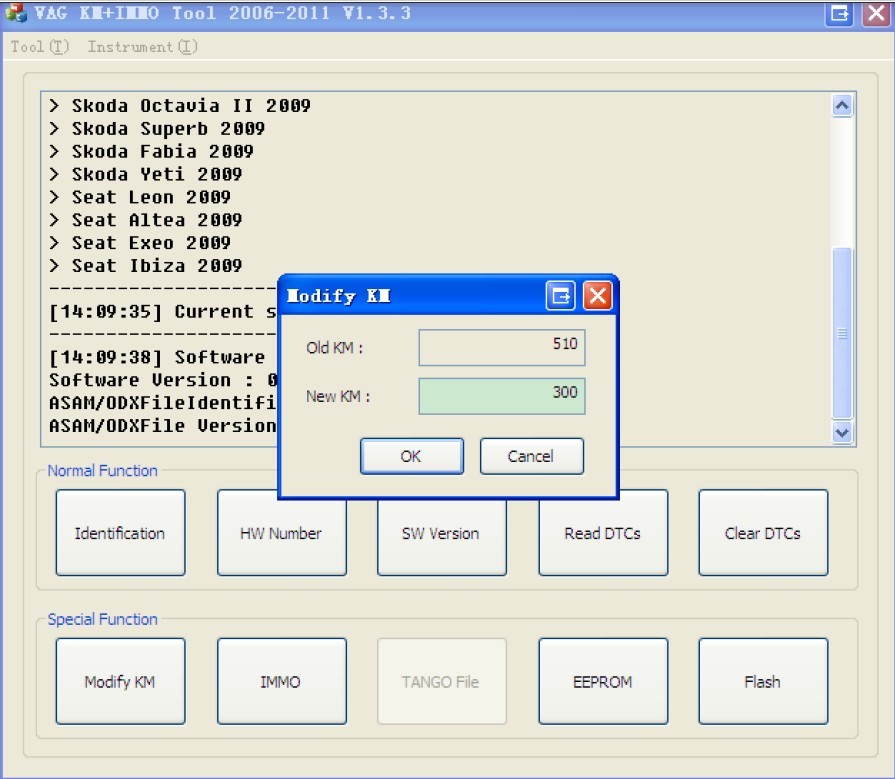

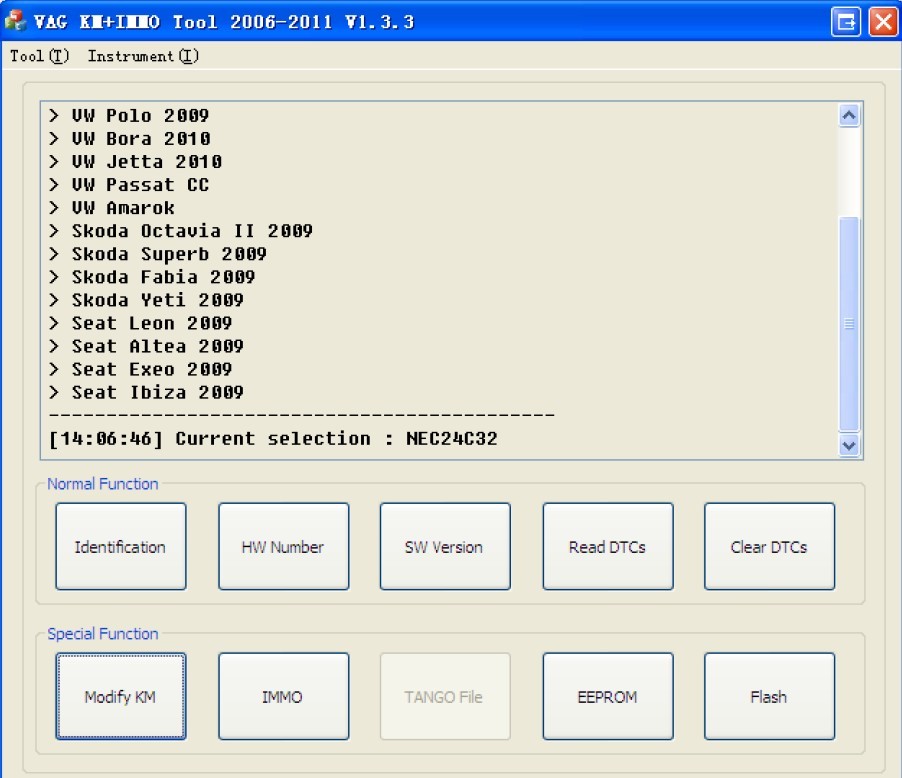

Software Display

VAG KM+IMMO tool software display 1
VAG KM+IMMO tool software display 2
VAG KM+IMMO tool software display 3
VAG KM+IMMO tool software display 4
VAG KM+IMMO tool software display 5
VAG KM+IMMO tool software display 6
VAG KM+IMMO tool software display 7
VAG KM+IMMO tool software display 7
VAG KM+IMMO tool software display 8


FAQ:

Q:What is the difference between VAG KM+IMMO TOOL BY OBD2 and Micronas OBD TOOL (CDC32XX)?
A:Here have two pics declare this question.

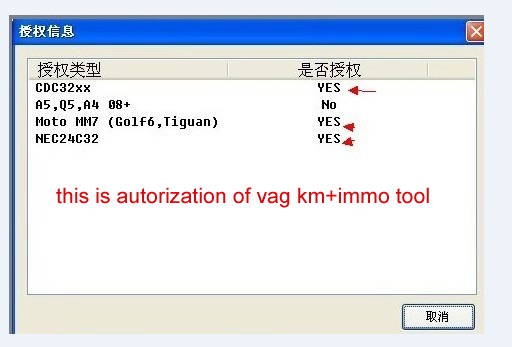

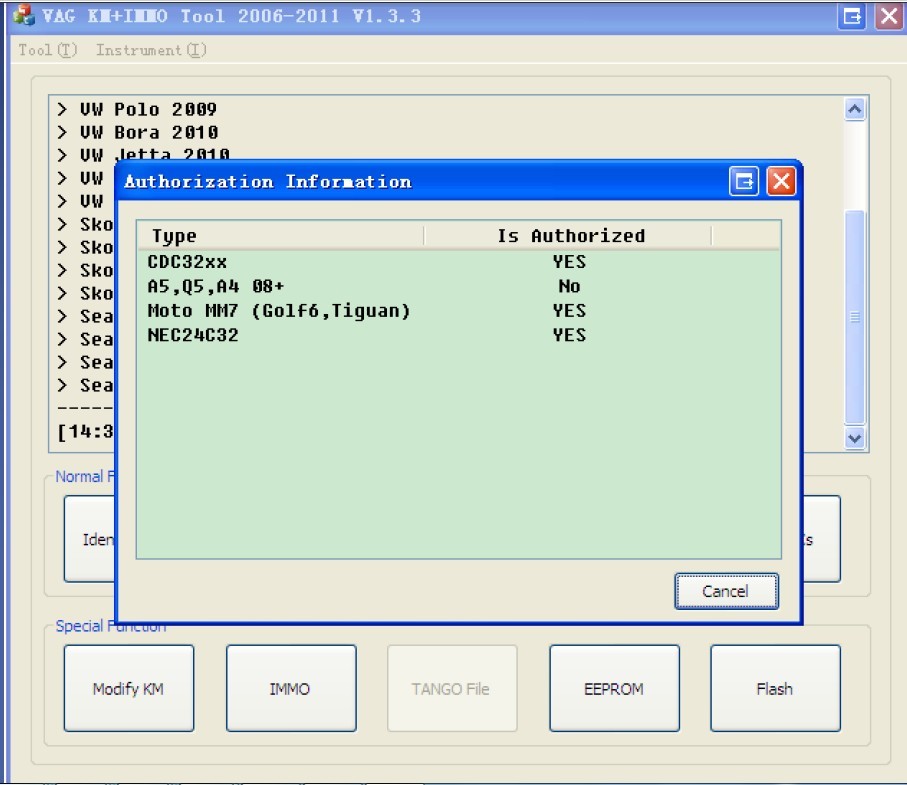

autorization informaiton

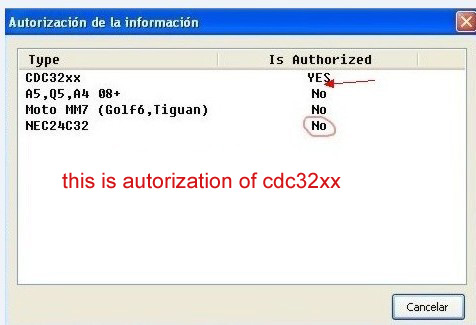

autorization informaiton 2

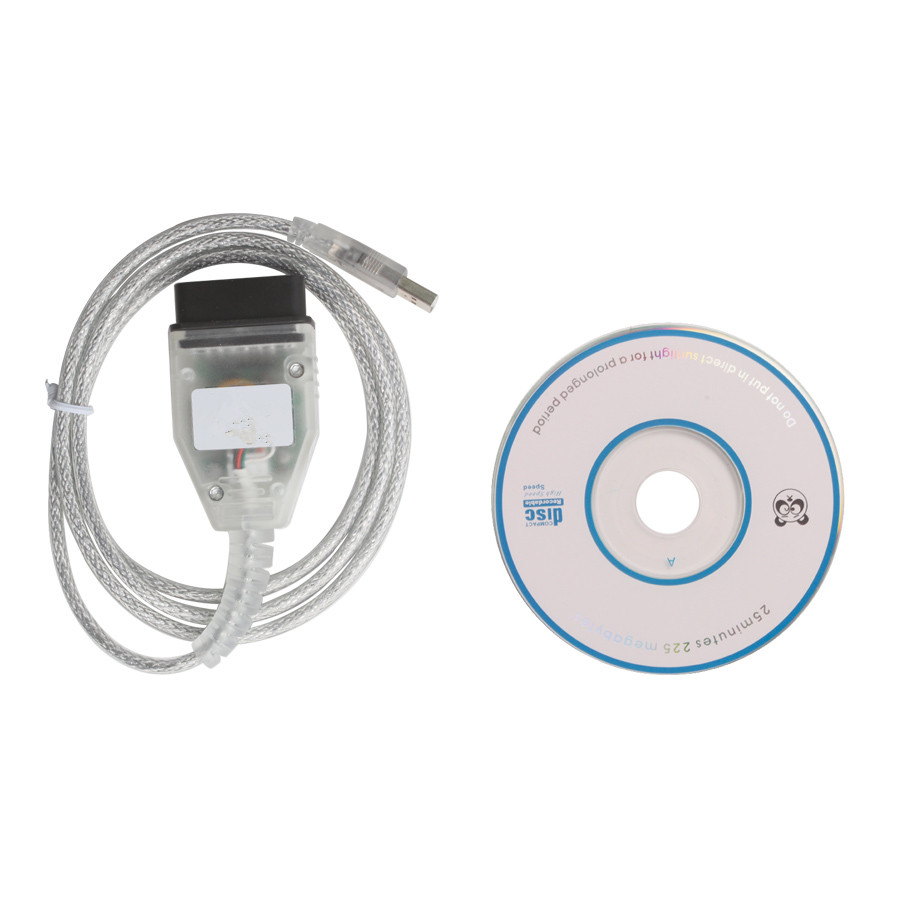

Package List:

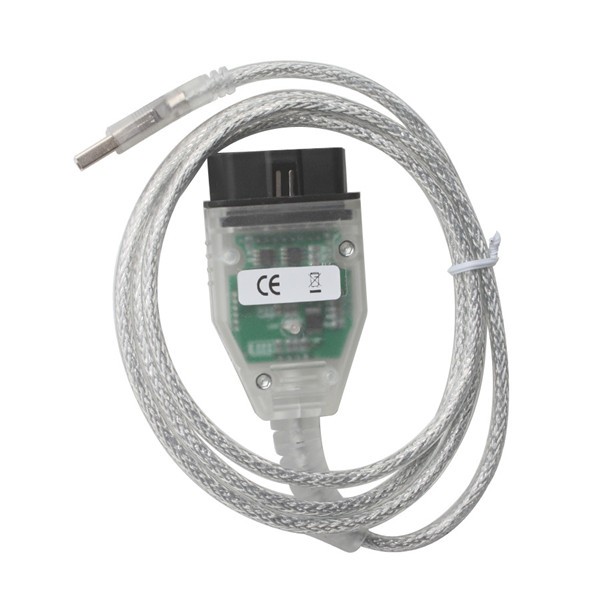

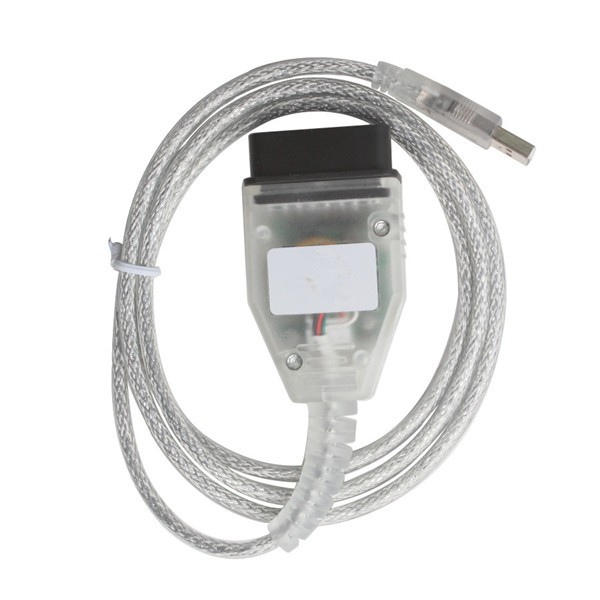

1pc x VAG KM IMMO TOOL
1pc x CD Driver

The Difference of VW/AUDI KM TOOL:

Item Code SV31 SV32 SM23 SM39
Brands Xhorse Xhorse NO Brands NO Brands
Software version V1.8.2 V1.8.2 V2.0 V2.5
Support Languages English,Spanish and Chinese English,Spanish and Chinese English English , Deutsch , Italian ,Portugal ,Russian, Czech
Can Update  YES(By Email) YES(Update Online) NO NO
Support Car VW/Skoda VW/Skoda/Seat VW /AUDI  VW /AUDI
Support Car year After 2006 After 2006 1999 - 2001 2005-2007
Support Procotol
Golf, Golf+ from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM)
Passat B6 from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM)
Bora, Jetta from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM)
Touran from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM)
Caddy   from year 2007 (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM
Tiguan, Eos from year 2008+
Octavia (with MICRONAS CDC3272 or CDC3217/97 and 24C32 EEPROM)
CDC32XX
MOTO MM7(Golf6,Tigun)
NEC24C32
NO
VW
Golf5 06_2007- CDC3217_97
EOS 06_2007- CDC3217_97
Caddy 06_2007- CDC3217_97
Tiguan 06_2007- CDC3217_97
Touran 06_2007- CDC3217_97
Passat 06_2007- CDC3217_97

Audi
A3 2005-2006  MB91F366_93C86
A3 2007-CDC3217_97
A8 2005- MB91F366_93C86
R8    CDC3217_97
TT 2007- CDC3217_97
Functions Do mileage correction ,read pin code,do EEPROM read/write by obd2  Do odometer correction, PIN code read, EEPROM read/write with VAG KM+IMMO tool by OBD2 Odometer Correction Mileage Tool Support VDO Motometer or Magneti Dashboard A special tool for VW AUDI cars odometer correction.
