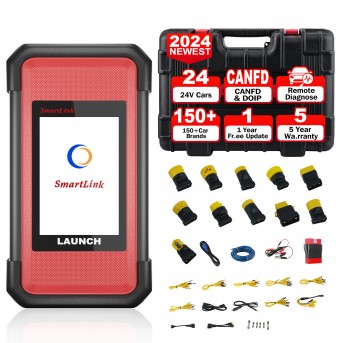

Launch X431 SmartLink Heavy-Duty Diagnostic Module, Compatible with X431 PRO3S+,V+,PAD3,PAD7 for 24V HD Trucks & Commercial Vehicles, Support CANFD&DOIP , 1 Year Free update
X431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Test & Measurement Tools Code Readers Scan Tools X431 HD Module Works for X431 V+, X431 PRO3, X-431 PRO3S Series , X431 PAD V , X431 PAD VII etc .
The Advantage of X431 SmartLinkC HD model :
Work as a VCI (Vehicle Communication Interface)
Work as a Local J2534 PassThru Device
Work as a Remote J2534 PassThru Device
Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V+, X431 PRO3, X-431 PRO3S Serie, X431 PAD V / VII etc .
LAUNCH X431 SmartLink C HD models works with the X431 series:
1.X431 Pro3s+
2.X431 X431 V+
3.X431 Pro3 ACE
4. X431 Pro3s+ V5.0
5. X431 PAD V
6. X431 PAD VII
7. X431 products which has 10 inch or above Tablet PC .
if you have the X431 Pro3s+ scanner, it supports the 24V Heavy truck module expansion，you can buy a X431 smartlink truck connector to Diagnosing and repairing 24V trucks.
X431 SmartLinkC HD model description :
X-431 SmartLinkC HD 2.0 is a heavy-duty vehicle diagnostic module based on Linux system developed by Launch Company. It has dual processors Cortex-A7+Cortex-M7, 8G RAM, 256M storage, and 320*480 resolution. Supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S and PRO5 series. Supports system-wide fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action testing.
Covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. Supports various types of vehicle software such as trucks, buses, construction machinery, agricultural machinery, trailers, ships, etc.
Comprehensive upgrade of diagnostic box
The heavy truck module is used to expand the configuration of passenger cars equipped with DBScar lower units into integrated passenger and commercial configurations, mainly supporting commercial vehicles.
Upgraded from X-431 HDIII to SmartLink C 2.0, the function is more powerful. The transmission speed is faster and the transmission is more stable; the visual operation interface makes it more convenient; it supports commercial vehicles, passenger cars, new energy and other models; it supports super remote diagnosis
X431 SmartLink C HD models supports Software List：
For CUMMINS , For DACHAI , For DAF , For DELPHI , For DENSO_DIESEL , For DFL , DS_For MITSUBISHI , DS_For NISSAN , DS_For TOYOTA , DS_For USAFORD , For FAWJIEFANG , For FOTONAUMAN , HD_ABS , HD_For AISIN , HD_For ALLISON , HD_For ASHOK_For LEYLAND , HD_For ASTRA , HD_For AUTOSEARCH , HD_For BENDIX_ABS , HD_For BENZ , HD_For BHARATBENZ , HD_For BONLUCK , HD_For BOSCH , HD_For BREMACH , HD_For CASE , HD_For CATERPILLAR , HD_For CHAOCHAI , HD_For CREDO , HD_DEMO , HD_For DETROIT , HD_For DEUTZ , HD_For DOOSAN , HD_For EATON , HD_For EICHER , HD_For ERF , HD_For FLEXICOIL , HD_For FREIGHTLINER , HD_For FUSO , HD_For GOLDENDRAGON , HD_For HALDEX_ABS , HD_For HIGER , HD_For HINO , HD_For HYUNDAI , HD_For INTERNATIONAL , HD_For IRISBUS , HD_For IRIZAR , HD_For ISUZU , HD_For IVECO , HD_For JCB , HD_For JMC , HD_For JOHNDEERE , HD_For KENWORTH , HD_For KINGLONG , HD_For KNORR , HD_For MACHINERY , HD_For MAHINDRA , HD_For MAN , HD_For MAXXFORCE , HD_For MILLER , HD_For MWM , HD_For NATURE , HD_For NEOPLAN , HD_For NEWHOLLAND , HD_OBD , HD_For PACCAR , HD_For PETERBILT , HD_For PSI , HD_For QUANCHAITY , HD_For RENAULT , HD_For SCR , HD_For SETRA , HD_For SITCAR , HD_For STERLING , HD_For STEYR , HD_For SUNLONG , HD_For SUNWIN , HD_For TATA , HD_For TRAILER , HD_For VOITH , HD_For VOLVO , HD_For VOLVO_CE , HD_For WABCO_ABS , HD_For WESTERN_STAR , HD_For XICHAI , HD_For YANGCHAI , HD_For YUFENG , HD_For ZF , HD_For ZHONGTONG , For JAC_HD , For KOBELCO , For MACK , For PERKINS , For SCANIA , For SHANGCHAI , For SINOTRUK , For UD , For WP_DIESEL , For YUCHAI , For YUTONG , For SHACMAN
X431 SmartLink C HD model Parameter :
CPU: Dual processor Cortex-A7+Cortex-M7
Operating system: Linux
Resolution: 320x480
Power consumption: < 6w
Storage: 8GB
Memory: 256M
Working temperature: 0℃~50℃
Working voltage: 9V DC—36V DC
Dimensions: 200mm×110mm×47mm
Communication method: WIFI/Bluetooth/Ethernet
X431 SmartLink C HD model Packing List :
1pc * LAUNCH X431 SmartLink C HD V2.0 Connector
1pc * HD15F to OBD2 16pin Connector
1pc * DB15F to HD15F Diagnostic Cable
1pc * HDB15M to For CAT 9pin Connector
1pc * HDB15M to For Volvo 8pin Connector
1pc * HDB15M to 16pin Connector
1pc * HDB15M to Type 2 OBD 9pin Connector
1pc * HDB15M to 6pin Connector
1pc * HDB15M to Jumper 10pin Connector
1pc * HDB15M to 16pin Connector
1pc * HDB15M to For Iveco 30pin Connector
1pc * HDB15M to For Iveco 38pin Connector
1pc * HDB15M to For Man 12pin Connector
1pc * HDB15M to For Benz 14pin Connector
1pc * HDB15M to For Man 37pin Connector
1pc * HDB15M to For Renault 12pin Connector
1pc * HDB15M to For Misubishi 12+6pin Connector
1pc * HDB15M to For Hyundai 16pin Connector
4pcs * electric control adapter cable 1
4pcs * electric control adapter cable 2
4pcs * electric control adapter cable 3
4pcs * electric control adapter cable 4
4pcs * electric control adapter cable 5
4pcs * electric control adapter cable 6
4pcs * electric control adapter cable 7
4pcs * electric control adapter cable 8
4pcs * electric control adapter cable 9
1pc * Double clamp power cord
1pc * Cigarette lighter cable
1pc * HD USB A to B Cable
1pc * Category 6 Gigabit Network Cable (Blue) 15m
