Details

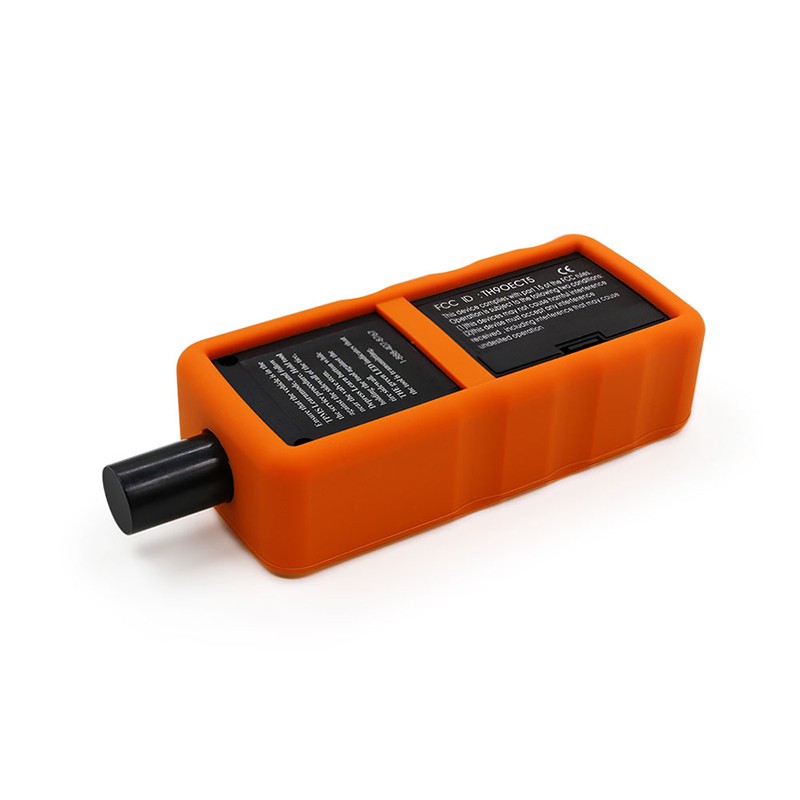

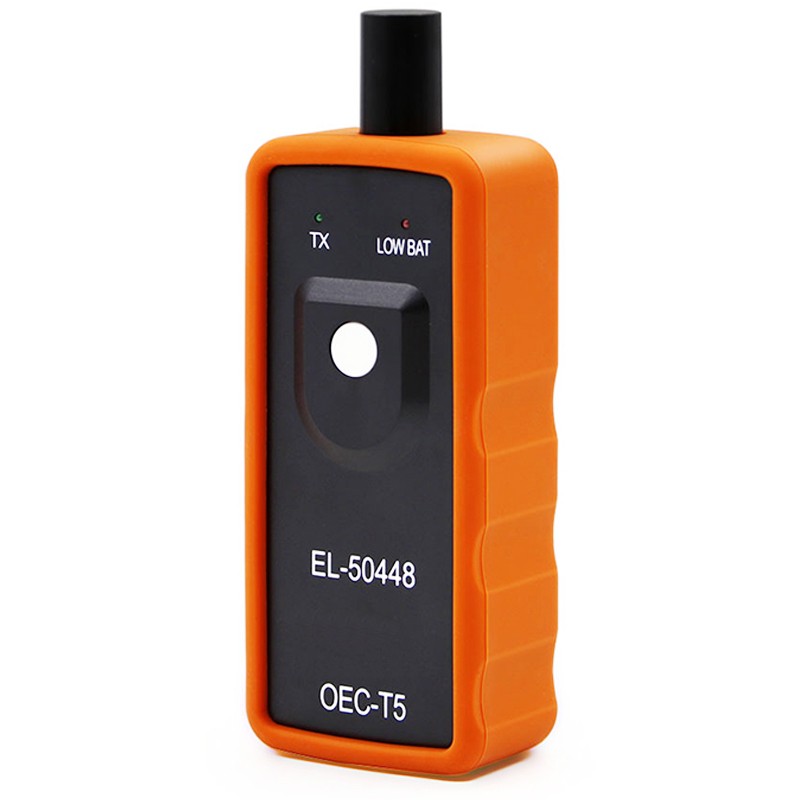

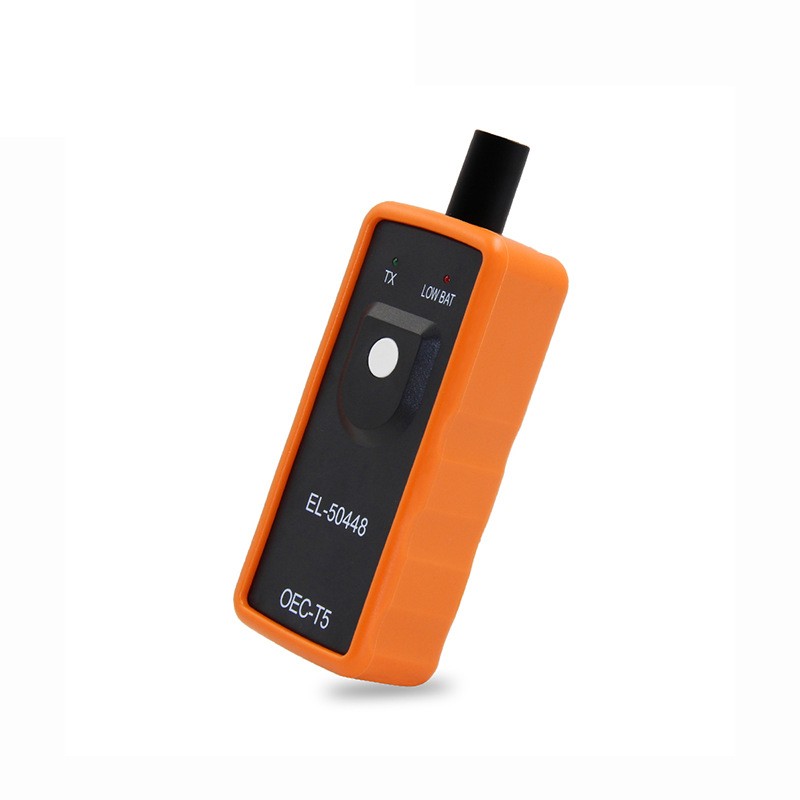

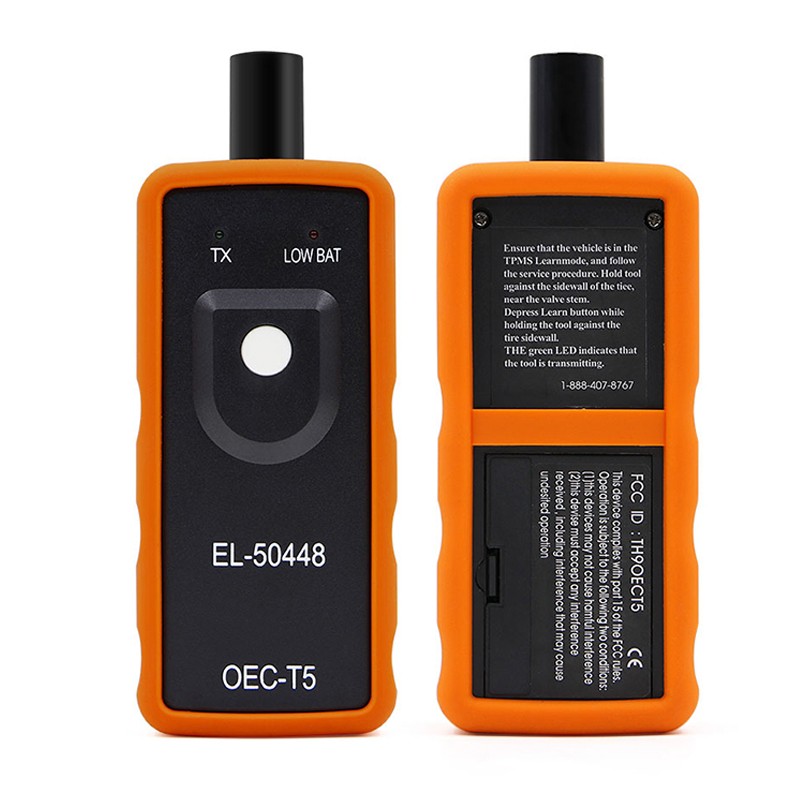

EL-50448 TPMS Reset tool
Note :
1. The package does not include the charger and battery.
2. There are two type : EL-50448 for G-M & for OPEL , pls choose the correct one , thank you !
Description:
For GM vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool EL-50448.Also works on 2014 GM models
The tire pressure sensor on models in & after 2012 can be read, only with some specified diagnostic tools.
Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor after replacing a tire or wheel speed sensor. Please refer to the specific methods as follows:
Step 1 - Enter leaning mode
Set the gearshift lever to "P"
Put the ignition switch to “ON”
Enter the interface of tire pressure display by DIC
DIC shows "Press Set / Ctrl to re-learn"
Press “Set / Ctrl”
The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode
Step 2 - Read tire pressure sensor information
Start from the front-left wheel,
Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall
El-50448 tire pressure tool starts by the start switch
Successful to read the tire pressure sensor information when the horn bleeps once
Step 3 - Same method to read other tire pressure information
Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.
Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.
For certain vehicles equipped with a Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool 50448
Compatiable Vehicle List:
EL-50448 :
2010 9-5
2010 for Acadia, for Enclave, for EOUTLOOK, for Traverse (VIN R/V)
2010 for Allure, for LaCrosse (VIN G)
2010 for Antara, for Cfor APtiva, for Terrain, for Winstorm
2010 for Avalanche, for Escalade, for Suburban, for STahoe, for Yukon (VIN C/K)
2010 for Aveo, for G3, for Barina (VIN S/T)
2010 for Buick Excelle
2010 for Buick Regal (China)
2010 for Camaro (VIN F)
2010 for Canyon, for Colorado (VIN S/T)
2010 for Cobalt, G5 (VIN A)
2010 for Corvette (VIN Y)
2010 for Cruze (China)
2010 for Cruze
2010 for CTS (VIN D)
2010 for Daewoo Lacetti
2010 for DTS (VIN K)
2010 for Equinox, for Terrain (VIN L)
2010 for Express, for Savana (VIN G/H)
2010 for G6 (VIN Z)
2010 for H3/H3T (VIN N)
2010 for HHR (VIN A)
2010 for Impala (VIN W)
2010 for Insignia
2010 for for LaCrosse (China)
2010 for Lucerne (VIN H)
2010 for Malibu (VIN Z)
2010 for Opel, for Vauxhall Astra
2010 for Sierra, for Silverado (VIN C/K)
2010 for SKY, for Solstice (VIN M)
2010 for SRX (VIN N)
2010 for STS (VIN D)
2010 for VE/WM - for Sedan, for Sportwagon, for Ute, for Lumina, for Cfor APrice, for HSV
2010 for VUE (VIN Z), for Cfor APtiva Sport
2011 for Acadia, for Enclave, for Traverse (VIN R/V)
2011 for Alpheon
2011 for Antara, for Cfor APtiva
2011 for Astra
2011 for Avalanche, for Escalade, for Suburban, for STahoe, for Yukon (VIN C/K)
2011 for Aveo, for Barina (VIN S/T)
2011 for Buick Excelle
2011 for Buick Regal (China)
2011 for Camaro (VIN F)
2011 for Canyon, for Colorado (VIN S/T)
2011 for for Cfor APrice PPV
2011 for for Cfor APtiva Sport
2011 for Corvette (VIN Y)
2011 for Cruze
2011 for CTS (VIN D)
2011 for DTS (VIN K)
2011 for Equinox, for Terrain (VIN L)
2011 for Express, for Savana (VIN G/H)
2011 for HHR (VIN A)
2011 for Impala (VIN W)
2011 for Insignia
2011 for for LaCrosse (China)
2011 for Lucerne (VIN H)
2011 for Malibu (VIN Z)
2011 for Orlando
2011 for Regal (VIN G)
2011 for Sierra, for Silverado (VIN C/K)
2011 for SRX (VIN N)
2011 for STS (VIN D)
2011 for VE/WM - for Sedan, for Ute, for Sportwagon, for Cfor APrice, for Lumina, for Omega, for VXR8
2011 for for Volt
2012 for Acadia, for Enclave, for Traverse (VIN R/V)
2012 for Alpheon (2706)
2012 for Ampera, for Volt (VIN R) (Europe)
2012 for Antara, for Cfor APtiva
2012 for Astra-J (2857)
2012 for Avalanche, for Escalade, for Suburban, for STahoe, for Yukon (VIN C/K)
2012 for Aveo Classic, for Barina Classic (VIN T)
2012 for Aveo, for Sonic (2777)
2012 for for Barina (2774)
2012 for Buick Excelle (2861)
2012 for Camaro (VIN F)
2012 for Canyon, for Colorado (VIN S/T)
2012 for for Cfor APrice PPV
2012 for for Cfor APtiva Sport
2012 for Chevrolet Cobalt (2809)
2012 for for Colorado (Other IO), for S10 (for South America)
2012 for Corvette (VIN Y)
2012 for Cruze (2863)
2012 for CTS (VIN D)
2012 for Equinox, for Terrain (VIN L)
2012 for Express, for Savana (VIN G/H)
2012 for Impala (VIN W)
2012 for Insignia (2707)
2012 for LaCrosse (China) (2710)
2012 for LaCrosse (VIN G) (2709)
2012 for Malibu (VIN Z)
2012 for Opel Combo-D
2012 for Optra, for Viva (VIN J)
2012 for Orlando (2859)
2012 for Regal (China) (2711)
2012 for Regal (VIN G) (2708)
2012 for Sierra, for Silverado (VIN C/K)
2012 for for Sonic (US/Canada) (2775)
2012 for SRX (VIN N)
2012 for VE/WM - for Sedan, for Ute, for Sportwagon, for Cfor APrice, for Lumina, for VXR8
2012 for Verano (US/Canada) (2816)
2012 for volt (VIN R)
2012 for Zafira-C (2860)
2013 for Acadia, for Enclave, for Traverse (VIN R/V) (3206)
2013 for Alpheon (3094)
2013 for Ampera, for Volt (VIN R) (Europe) (3211)
2013 for Antara, for Cfor APtiva (5376555)
2013 for Astra-J Convertible/for Coupe (5376567)
2013 for Astra-J (5376577)
2013 for ATS (VIN A) (3086)
2013 for Avalanche, for Escalade, for Suburban, for STahoe, for Yukon (VIN C/K) (3088)
2013 for Aveo, for Sonic (Africa, for Middle East, for AP, for South America, for CKD, Mexico) (5376711)
2013 for Aveo, for Sonic (Europe) (5376704)
2013 for for Barina (5376837)
2013 for Camaro (VIN F) (3106)
2013 for for Cfor APrice PPV (3105)
2013 for for Cfor APtiva Sport (3101)
2013 for Cobalt (3107)
2013 for for Colorado, for Colorado 7, for S10, for Trailblazer (5392270)
2013 for Combo-D
2013 for Corvette (VIN Y) (3104)
2013 for Cruze (Global) (5377099)
2013 for CTS (VIN D) (3085)
2013 for Encore (China) (5377162)
2013 for Encore, for Trax (North America) (5377181)
2013 for Equinox, for Terrain (VIN L) (3100)
2013 for Excelle (5377155)
2013 for Express, for Savana (VIN G/H) (3103)
2013 for Impala (VIN W) (3102)
2013 for Insignia (3098)
2013 for for LaCrosse (China) (3095)
2013 for for LaCrosse (VIN G) (North America) (3090)
2013 for Malibu (China) (3096)
2013 for Malibu (Europe, Other IO and for South America) (2713)
2013 for Malibu (North America) (3093)
2013 for Mokka, for Trax, for Tracker (Europe) (5377179)
2013 for Onix (3166)
2013 for Orlando (Global) (5377530)
2013 for Regal (China) (3099)
2013 for Regal (VIN G) (North America) (3089)
2013 for Sierra, for Silverado (VIN C/K) (3087)
2013 for for Sonic (US/Canada) (5377994)
2013 for Spark (US/Canada), for Barina Spark (Automatic Transmission) (5421555)
2013 for Spin
2013 for SRX (VIN N) (3201)
2013 for for Trax, for Tracker (Africa, Australia, for Middle East, for South America) (5377156)
2013 for VE/WM for Ute, for Cfor APrice, for Lumina
2013 for Verano (US/Canada) (5377996)
2013 for for Volt (VIN R) (North America, Holden) (3210)
2013 for XTS (China) (3092)
2013 for XTS (North America) (3091)
2013 for Zafira-Tourer
Package List:
1 x EL50448
EL-50448 Reviews:
1.works on truck and car:
Simple and inexpensive but works great. Much better than going to the dealer or a tire store just to get your pressure sensors reset. I used it on my truck and my wife's car and it only took a few minutes to reset all four wheels on each.
2. with correct low battery display:
I've never been able to get my TP sensors to program using the "let air out" method on my 2007 for Tahoe. Before I had this tool, I would just remember which tires were which when I rotated them, but no longer. Now, I can reprogram them in just a few seconds and the dash display correctly indicates which tire is low. This tool should have come with the vehicle.
3. Easy to use:
The operation of this product is simple and straightforward. As stated it's hard to get excited about spending this amount of money just to rotate tires, but considering what dealers would charge, it would not take many trips service visits to pay for the unit. As far as working it does exactly what it says it will do with no drama. Put the vehicle in reset mode and push the button on the unit following directions outlined in the car owners manual.
4. I could not believe I needed a special tool to rotate my tires. From what I understand 2010 (2011?) and older vehicles, you can use any big magnet to reset your Tire Pressure Sensors. 2011 (2012?) and up to at least my 2013 for Silverado, you need one of these gizmos. This one works like a champ, and is the one I found referenced through a for G-M website.
5. Wide for G-M vehicle coverage:
The deflate method is verified ok only on for Chevrolet Volt 2011 year, with the El-50448 TPMS relearn tool, I could get the 4 TPMS programmed in less than one minute. El-50448 could program TPMS on for G-M 2010-2013 year.
