10 Pieces KINGBOELN OBD SCAN ELM327 OBD2 Bluetooth V1.5 Car Diagnostic Tool ELM 327 OBD II Scanner Chip PIC18F25K80 Work Android/IOS/Windows 12V Diesel

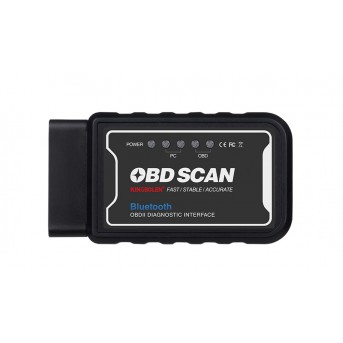

KINGBOELN OBD SCAN ELM327 OBD2 Bluetooth V1.5

:SC02-M05
:
$85.00
:
Buy It Now

Details

ELM327-kingbolen_01ELM327-kingbolen_02



ELM327 Bluetooth with PIC18F25K80 chip

Description:

Wifi ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.

With proper software installed in the host device, you may have following parameters read out from your vehicle:

Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Note:

Your vehicle may not support all above parameters.How many parameters you can get is depended on the vehicle manufacturer’s implementation.

Multi-Protocol Support:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

Item Guidance:

Hardware requirements:

PC/for iPhone/for iPod/for iPod Touch/for iPad
Important: Your PC requires wireless LAN router supporting WiFi 802.11 a/b/g for linking.

Software Requirements:

- All ELM327 based software
- For iOS base software in Apple store: Rev / FUZZYCar / DashCmd / SpeedPORT / Nova Scan
Attention:For iOS base software are not included you must buy from Apple App Store! we only offer PC version software &  Instructions manual (on the CD)

Technical Specifications:

SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius

Packing list:

1 x ELM327 obd interface

After-sales Service and warranty

Shipping Warranty:

We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.


DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Singpost/HongKong Airmail: 7- 20 working days. At most 45 days.

If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email: Contact us

Warrany Policy:

Problem Details Warranty Time Treatment Responsibility for Charge Remark
Quality Problem within 7 days after receiving package Buyer: Submit a complaint(Mail to sales360diag@hotmail.com ) and Return the items to Seller's assigned address by EMS or Post. Return Ship cost: Seller Any costs because of customer's wrong operation leads to return will be responsible by the buyers.
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 8-14 days after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 15 days to 1 year after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: Repair it. Repair Charge: Seller
Replace Parts Charge: Buyer
Lost in the delivery 30 days after shipping Buyer: Submit proof to seller New Product Cost: Seller
Seller: Contact carrier to ask for Claimant and arrange another shipment to buyer Resend Ship Cost: Seller
Customs Problem 30 days after shipping Buyer: Finish customs clearance when import Customs duties or agent fees: Buyer
Seller: Try to help buyer to finish customs clearance but not responsible on this.
Delivery Problems:
broken,incomplete,
wrong address
within 7 days after receiving package Buyer: Report to Seller,and sumbit Complaint to Carrier (DHL,TNT,UPS,EMS,etc..) in 7 days to get a Complaint number and send the number to Seller.After the seller's perpmit,return the full package in good condition to assigned address by EMS or Post. Caution: The Carrier will not accept Complaint after 7 days. Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: ask for compensation as per the Complaint number from Carrier ,not responsible for any losses after 7 days. Repair Charge: Seller
Replacement Charge: Buyer
Received wrong Items within 3 days after receiving package Buyer: Report to Seller,and return the full package in good condition to assigned address by EMS or Post in 3 days Return Ship cost: Seller
Seller: Arrange shipment for the correct items Resend ship cost: Seller
Man-made Damage: such as update machine online, dismantle the equipment, and so on within 1 year Buyer: Report to Seller,and return the items for repairing to assigned address by EMS or Post Return Ship cost: Buyer
Resend ship cost: Buyer
Repair Charge: Buyer
Replacement Charge: Buyer
Note: 1. Warranty Policy only protects Main parts.Other parts are out of our warranty policy.
2. Before return,please confirm with us. we will give you a shipping address once confirmming the problem. Buyer will be responsible for any risks or costs without our permission.
3. Buyer needs return the items by cheaper EMS or Post, or we can't get them because of restrict Customs Policy.
4. The Warranty Policy fits for all products except some products which state the warranty specially in description.


Warranty Item

Main Unit for Equipment 1 year warrnaty
Machine peripheral equipments and wire No warranty
Car diagnostic laptop 3 months
Data Hard Disk No warranty
Car software No warranty
Consumables No warranty
