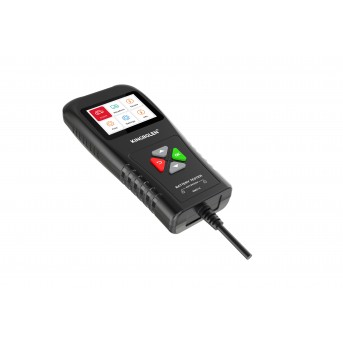

Battery Anaylzer Automotive BM510 6V 12V 24V Truck Motorcycle Reversible Access Clip Charging Test Tool Car Voltage Detector

Does your battery need to be replaced?

There are more and more on-board electrical appliances, and the requirements for battery capacity and quality are getting higher and higher. Can your battery still support it?

Battery Anaylzer Automotive BM510 Wide Range Of Applications

It can test 6V/12V/24V three different types of batteries, suitable for a variety of common models and equipment, one machine for multiple purposes.

Multiple Functions In One Battery Anaylzer Automotive BM510

The four functions can be switched at will to help you quickly detect the battery status of your car. ●[Battery Test] Life / Voltage / CCA / Internal resistance ●[Start The Test] Battery discharge performance ●[Load Test] Engine performance ●[Charging Test] Engine charging system

1. Voltage Waveform Monitoring

Monitor the battery status in real time, understand the current floating size of the battery voltage, and have automatic storage and playback functions.

2. Support Multiple Battery Types

It supports a variety of battery standards around the world, can test almost all car start-up lead-acid batteries, and has a wide range of applications. ●EPS lead-acid battery; ●Car start battery; ●AGM / EFB start-stop battery ; ●Electric vehicle battery ; ●UPS lead-acid battery ; ●Gel battery Note: UPS battery/electric vehicle battery/motorcycle battery can only measure internal resistance/power/voltage, not battery life.

3. Low Frequency Constant Current Test

Give the battery a fixed frequency and current test signal, sample, rectify, and filter its voltage, and then calculate the internal resistance of the battery.

4. Ten Major Test Standards

Geometry supports all current common battery standards, and a wide range of tests can meet your various needs. ●CCA (100 - 2000 ) ●IEC (100 - 1400 ) ●EN (100 - 2000 ) ●DIN (100 - 1400 ) ●CA (100 - 2000 ) ●BCI (100 - 2000 ) ●MCA (100 - 2000 ) ●SAE (100 - 2000 ) ●GB (30AH - 220AH ) ●JIS (26A17 - 245H52 )

5. Regardless Of Positive and Negative

BM510 has a protection function, even if the positive and negative polarity is wrong, the device can start normally, and the device and battery will not be damaged.

6. HD Color Screen

High-definition TFT LCD screen display, will not appear ordinary LCD lack of characters and broken strokes, etc., with backlight function.

7. Ripple Test

Test the charging system of the engine, the smaller the waveform fluctuation, the more stable the voltage, indicating that the battery is in good condition. Note: If the test result is normal, the battery is charged normally. If the voltage reading is greater than 15.0V ( for a 24V system, the reading is greater than 30.00V ), please check the voltage regulator; if the voltage reading is less than 13.3V ( for a 24V system, the reading is less than 26.60V ), Please check the connection points, wires and engine.

8. Screenshot Function

It has a one-click screen capture function with long press "Up" and " Down" button., which is used to capture and save important data, fast and convenient. ( Note: The device can store up to 10 pictures )

9. Mini USB Interface- Free Update Lifetime

It is used for software upgrade, no need to install driver, the process is simple and easy to operate.

10. Multi-Language Available of Car Battery Tester BM510

English French Russian German Italian Japanese Spanish Portuguese Polish Chinese

11. Use High Quality Wire

Selected high-quality environmentally friendly materials, good elasticity, not easy to break, tough and durable.

Car Battery Tester BM510 Parameter Information:

Let you quickly understand the product and use it more easily!
