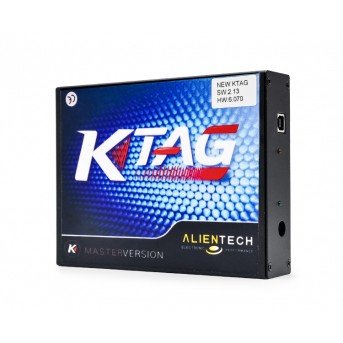

V2.13 KTAG K-TAG ECU Programming Tool Master Version Hardware V6.070 k tag Unlimited tokens free shipping

Software Version: V2.13
Hardware Version: V6.070

:SE89-D
:
:

Special Price: $905% 5%

Regular Price: $94.00

:
Buy It Now

Details

NEW KTAG K-TAG ECU Programming Tool


Software Version: V2.13
Hardware Version: V6.070

Note: Please don't try to update the KTAG, it will damage the tool. There are two ways to solve the problem:
1. If you know how to change CPU LPC2478FBD208 for Ktag, you can buy new one from us, 23USD each piece, not including the shipping cost.
2. If you don't know how to change CPU LPC2478FBD208 for Ktag, you need to send back the main unit for repair.
3. Pls do not connect the internet when you use K-tag , or k-tag will be locked .
4. It is with Unlimited tokens


KTAG Description:
The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.

K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

Important Notice: You just can use our software, and also can not update K-TAG yourself, or if damaged by update, you need to pay the maintenance fees.


Cables From Left to Right:
1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H


Available protocols for K-TAG:
BDM MOTOROLA MPC5xx
TYPE BRAND ECU ECU_TYPE K-TAG
Car FOR F-ORD B-OSCH EDC 16C34-2.20 1060
Car for FIAT B-OSCH EDC 16C39 1070
Car for SEAT B-OSCH EDC16 1002
Car for SKODA B-OSCH EDC16 1002
Car for VOLKSWAGEN B-OSCH EDC16 1002
Car for Merdes B-OSCH EDC16 C2 1004
Car BW B-OSCH EDC16 C31 1003
Car Merdes B-OSCH EDC16 C31 1004
Truck Mitsubishi Fuso B-OSCH EDC16 C31 1043
Car BW B-OSCH EDC16 C31 1065
Car for Volvo B-OSCH EDC16 C31 1068
Car for Merdes B-OSCH EDC16 C31 1071
Car for Mitsubishi B-OSCH EDC16 C31 1077
Car BW B-OSCH EDC16 C35 1003
Car BW B-OSCH EDC16 C35 1065
Car for Kia B-OSCH EDC16 C39 1061
Car for MAHINDRA B-OSCH EDC16 C8 1021
Car for J-EEP B-OSCH EDC16 C-C2 1014
Car for Merdes B-OSCH EDC16 CP31 1071
Car BW B-OSCH EDC16 CP35 1065
Car for Merdes B-OSCH EDC16 CP36 1071
Car for HYUNDAI B-OSCH EDC16+ 1061
Car for LANCIA B-OSCH EDC16+ 1070
Car for F-ORD B-OSCH EDC16+ C34 1060
Car for MAZDA B-OSCH EDC16+ C34 1060
Car for PEUGEOT B-OSCH EDC16+ C34 1060
Car for F-ORD B-OSCH EDC16+ C34/5.95 1060
Car for CITROEN B-OSCH EDC16+ C34/C39 1060
Car for PEUGEOT B-OSCH EDC16+ C34/C39 1060
Car MINI B-OSCH EDC16+ C35 1065
Car B-UICK B-OSCH EDC16+ C39 1074
Car for C-HEVROLET B-OSCH EDC16+ C39 1074
Car for G-M DAEWOO B-OSCH EDC16+ C39 1074
Car for HOLDEN B-OSCH EDC16+ C39 1074
Car for OPEL G-M B-OSCH EDC16+ C39 1074
Car for SAAB B-OSCH EDC16+ C39 1074
Car for SATURN B-OSCH EDC16+ C39 1074
Car for SUBARU B-OSCH EDC16+ C39 1074
Car for VAUXHALL B-OSCH EDC16+ C39 1074
Car GWM B-OSCH EDC16+ C39 1084
Truck for IVECO TRUCKS B-OSCH EDC16+ C39 1140
Car for SUZUKI B-OSCH EDC16+ C39 1212
Car for CHRYSLER B-OSCH EDC16+ CP31 1077
Car for J-EEP B-OSCH EDC16+ CP31 1077
Car for DODGE B-OSCH EDC16+ CP31 1080
Car SMART B-OSCH EDC16+ CP32 1077
Car for VOLKSWAGEN B-OSCH EDC16+ CP34 1067
Car for LAND-ROVER B-OSCH EDC16+ CP39-6.40 1120
Car for SEAT B-OSCH EDC16+ U31/U34 1067
Car for SKODA B-OSCH EDC16+ U31/U34 1067
Car for VOLKSWAGEN B-OSCH EDC16+ U31/U34 1067
Tractor LINDE AG B-OSCH EDC16+ U31/U34 1067
Car SMART B-OSCH EDC16+C31 1077
Car for N-ISSAN B-OSCH EDC16+C36 1029
Car for OPEL G-M B-OSCH EDC16+C36 1029
Car for RENAULT B-OSCH EDC16+C36 1029
Car for CITROEN B-OSCH EDC16C0/C3 1005
Car for PEUGEOT B-OSCH EDC16C0/C3 1005
Car for N-ISSAN B-OSCH EDC16C0/C3 1006
Car for OPEL G-M B-OSCH EDC16C0/C3 1006
Car for RENAULT B-OSCH EDC16C0/C3 1006
Car for SUZUKI B-OSCH EDC16C0/C3 1016
Car for HONDA B-OSCH EDC16C1-7 1012
Car for F-ORD B-OSCH EDC16C3 1011
Car for MAZDA B-OSCH EDC16C3 1011
Car for F-ORD B-OSCH EDC16C34 1060
Car for FIAT B-OSCH EDC16C39 1060
Car for Alfa Romeo B-OSCH EDC16C39 1070
Car for FIAT B-OSCH EDC16C39 1070
Car for LANCIA B-OSCH EDC16C39 1070
Car for F-ORD B-OSCH EDC16C7-7 1011
Car for MAZDA B-OSCH EDC16C7-7 1011
Car for Alfa Romeo B-OSCH EDC16C8 1001
Car for FIAT B-OSCH EDC16C8 1001
Car for LANCIA B-OSCH EDC16C8 1001
Truck for IVECO TRUCKS B-OSCH EDC16C8 1130
Car for FIAT B-OSCH EDC16C9 1001
Car for HOLDEN B-OSCH EDC16C9 1007
Car OPEL G-M B-OSCH EDC16C9 1007
Car SAAB B-OSCH EDC16C9 1007
Car SATURN B-OSCH EDC16C9 1007
Car SUBARU B-OSCH EDC16C9 1007
Car VAUXHALL B-OSCH EDC16C9 1007
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car C-HEVROLET B-OSCH EDC16C9 1017
Car Aui B-OSCH EDC16CP34 1067
Car Adi B-OSCH EDC16CP34 V8 M&S 1067
Car Adi B-OSCH EDC16U 1002
Car Adi B-OSCH EDC16U31 1067
Car SKODA B-OSCH EDC16U31 1067
Car Adi B-OSCH EDC16U34 1067
Truck F-ORD TRUCKS B-OSCH EDC7 1031
Truck VOLVO TRUCKS B-OSCH EDC7 C1 1059
Truck MAN TRUCKS B-OSCH EDC7/C 1135
Truck MAN TRUCKS B-OSCH EDC7+/C32 1139
Truck AGRALE TRUCKS B-OSCH EDC7C1 1383
Truck F-ORD TRUCKS B-OSCH EDC7C1/C2 1031
Truck VOLKSWAGEN TRUCKS B-OSCH EDC7C1/C2 1058
Tractor CASE TRACTORS B-OSCH EDC7C1/C2 1129
Tractor NEW HOLLAND B-OSCH EDC7C1/C2 1129
Truck IVECO TRUCKS B-OSCH EDC7C1/C2 1129
Tractor LEXEA B-OSCH EDC7C1/C2 1134
Truck AGRALE TRUCKS B-OSCH EDC7C1/C2 1134
Truck ASTRA TRUCKS B-OSCH EDC7U31 1137
Truck IVECO TRUCKS B-OSCH EDC7U31 1137
Tractor AGCO TRACTORS B-OSCH EDC7UC31 1089
Tractor CASE TRACTORS B-OSCH EDC7UC31 1089
Tractor FENDT TRACTORS B-OSCH EDC7UC31 1089
Tractor MASSEY FERGUSON B-OSCH EDC7UC31 1089
Tractor VALTRA TRACTORS B-OSCH EDC7UC31 1089
Tractor FENDT TRACTORS B-OSCH EDC7UC31 1160
Tractor NEW HOLLAND B-OSCH EDC7UC31/EDC16U40 1143
Tractor DEUTZ B-OSCH EDC7UC31/EDC16U40 1144
Tractor FENDT TRACTORS B-OSCH EDC7UC31/EDC16U40 1160
Tractor L-AMBORGHINI TRACTORS B-OSCH EDC7UC31/EDC16U40 1160
Car F-ORD B-OSCH ME9 1076
Car Volvo B-OSCH ME9.0 1073
Car BW B-OSCH ME9.2 1019
Car VOLKSWAGEN B-OSCH ME9.5 FSI 1064
Car OPEL G-M B-OSCH ME9.6 1225
Car OPEL G-M B-OSCH ME9.6.1 1225
Car Merdes B-OSCH ME9.7 1102
Car FERRI B-OSCH MED 9.6.11 1335
Car Adi B-OSCH MED9.1.1 1064
Car Adi B-OSCH MED9.1.5 1064
Car Adi B-OSCH MED9.5.10 1064
Car BW B-OSCH MEV946 1019
Car BW B-OSCH MEV946 1103
Car SSANGYONG DPHI DCM 1022
Car Kia DPHI DCM3.2 1112
Car SSANGYONG DPHI DCM3.2 1112
Truck DAF TRUCKS DPHI DMCI 1142
Car F-ORD DPHI MPC 555 1020
Car JAGUAR DPHI MPC 555 1020
Car OPEL G-M MARELLI MAREL0100 Z13DTJ 1107
Car C-HEVROLET MARELLI MARELLI+ 6O203D 1107
Car HOLDEN MARELLI MARELLI+ 6O203D 1107
Car OPEL G-M MARELLI MARELLI+ 6O203D 1107
Car SATURN MARELLI MARELLI+ 6O203D 1107
Car SUZUKI MARELLI MARELLI+ 6O203D 1107
Car VAUXHALL MARELLI MARELLI+ 6O203D 1107
Car Alfa Romeo MARELLI MJD6F3 1085
Car FIAT MARELLI MJD6F3 MPC563 1085
Car LANCIA MARELLI MJD6F3 MPC563 1085
Car FIAT MARELLI MJT 1300 1008
Car LANCIA MARELLI MJT 1300 1008
Car SUZUKI MARELLI MJT 1300 1009
Car C-HEVROLET MARELLI MJT 1300 1010
Car HOLDEN MARELLI MJT 1300 1010
Car OPEL G-M MARELLI MJT 1300 1010
Car VAUXHALL MARELLI MJT 1300 1010
Truck VOLKSWAGEN TRUCKS MOTOROLA CM850 1093
Tractor CASE TRACTORS MOTOROLA CM850 1124
Tractor MC CORMICK MOTOROLA CM850 1124
Tractor NEW HOLLAND MOTOROLA CM850 1124
Truck DAF TRUCKS MOTOROLA CM850 1125
Tractor HYUNDAI TRACTORS MOTOROLA CM850 1169
Tractor John Deere MOTOROLA CM850 1190
Tractor JCB TRACTORS MOTOROLA CM850 1191
Tractor John Deere PHOENIX L3-4-6-9-11-12-14-15-16 1123
Tractor CLAAS TRACTORS PHOENIX 1123
Tractor CMI PHOENIX 1123
Car BW SIEMENS MS45 1018
Car BW SIEMENS MSS70 1110
Car BW SIEMENS MSV70 1110
Car Adi SIEMENS PPD1.2 1075
Car VOLKSWAGEN SIEMENS PPD1.5 1075
Car SEAT SIEMENS PPD1.XX 1075
Car SKODA SIEMENS PPD1.XX 1075
Car VOLKSWAGEN SIEMENS PPD1.XX 1075
Car LAND-ROVER SIEMENS SID 201-203-204 1098
Car Volvo SIEMENS SID 206 1082
Car JAGUAR SIEMENS SID 20X 1105
Car N-ISSAN SIEMENS SID 301 1081
Car RENAULT SIEMENS SID 301 1081
Car Volvo SIEMENS SID 803 1032
Car Volvo SIEMENS SID 803A 1078
Car PEUGEOT SIEMENS SID201 1104
Car F-ORD SIEMENS SID206 1082
Car MAZDA SIEMENS SID206 1082
Car CITROEN SIEMENS SID803 1032
Car PEUGEOT SIEMENS SID803 1032
Car CITROEN SIEMENS SID803A 1078
Car F-ORD SIEMENS SID803A 1078
Car PEUGEOT SIEMENS SID803A 1078
Car FIAT SIEMENS SID803A 1083
Car LANCIA SIEMENS SID803A 1083
Car Kia SIEMENS SIM2K 1194
Car Adi SIEMENS SIMOS 6.2/6.3 1174
Truck RENAULT TRUCKS TRW TRW EMS2 1138
Truck VOLVO TRUCKS TRW TRW EMS2 1138
Truck RENAULT TRUCKS TRW TRW EMS2 DXI12 1138

J-TAG NEXUS MPC5xx

TYPE BRAND ECU ECU_TYPE K-TAG
Car CITROEN DPHI DCM3.5 244
Car F-ORD DPHI DCM3.5 244
Car Merdes DPHI DCM3.5 248
Car J-EEP DPHI DCM3.5 - CRD2 248
Car FIAT MARELLI 7GF 247
Car SUZUKI MARELLI 8DS 364
Car Abarth MARELLI 8GMF 243
Car Alfa Romeo MARELLI 8GMF 243
Car FIAT MARELLI 8GMF 243
Car FIAT MARELLI 8GSF 243
Car LANCIA MARELLI 8GSF 243
Car Alfa Romeo MARELLI MJ8DF 303
Car CITROEN MARELLI MJ8DF 303
Car FIAT MARELLI MJ8DF 303
Car LANCIA MARELLI MJ8DF 303
Car PEUGEOT MARELLI MJ8DF 303
Car Fiat MARELLI MJ8F3 382
Truck VOLVO TRUCKS TRW TRW EMS2 246

Just as the full range of Alientech programmers, K-TAG is available both in Master and Slave version. This way, Slave user can rely on the larger network of Master in the chiptuning field.The only thing that K-TAG does not do: OBD Communication. But for that you can count on KESSv2.

To use K-Tag at best on any kind of Electronic Control Unit, Alientech offers you a wide range of special adapters, to be soldered on the ECU or to be used on the positioning frame.

After-sales Service and warranty

Shipping Warranty:

We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.


DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Singpost/HongKong Airmail: 7- 20 working days. At most 45 days.

If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email: Contact us

Warrany Policy:

Problem Details Warranty Time Treatment Responsibility for Charge Remark
Quality Problem within 7 days after receiving package Buyer: Submit a complaint(Mail to sales360diag@hotmail.com ) and Return the items to Seller's assigned address by EMS or Post. Return Ship cost: Seller Any costs because of customer's wrong operation leads to return will be responsible by the buyers.
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 8-14 days after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 15 days to 1 year after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: Repair it. Repair Charge: Seller
Replace Parts Charge: Buyer
Lost in the delivery 30 days after shipping Buyer: Submit proof to seller New Product Cost: Seller
Seller: Contact carrier to ask for Claimant and arrange another shipment to buyer Resend Ship Cost: Seller
Customs Problem 30 days after shipping Buyer: Finish customs clearance when import Customs duties or agent fees: Buyer
Seller: Try to help buyer to finish customs clearance but not responsible on this.
Delivery Problems:
broken,incomplete,
wrong address
within 7 days after receiving package Buyer: Report to Seller,and sumbit Complaint to Carrier (DHL,TNT,UPS,EMS,etc..) in 7 days to get a Complaint number and send the number to Seller.After the seller's perpmit,return the full package in good condition to assigned address by EMS or Post. Caution: The Carrier will not accept Complaint after 7 days. Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: ask for compensation as per the Complaint number from Carrier ,not responsible for any losses after 7 days. Repair Charge: Seller
Replacement Charge: Buyer
Received wrong Items within 3 days after receiving package Buyer: Report to Seller,and return the full package in good condition to assigned address by EMS or Post in 3 days Return Ship cost: Seller
Seller: Arrange shipment for the correct items Resend ship cost: Seller
Man-made Damage: such as update machine online, dismantle the equipment, and so on within 1 year Buyer: Report to Seller,and return the items for repairing to assigned address by EMS or Post Return Ship cost: Buyer
Resend ship cost: Buyer
Repair Charge: Buyer
Replacement Charge: Buyer
Note: 1. Warranty Policy only protects Main parts.Other parts are out of our warranty policy.
2. Before return,please confirm with us. we will give you a shipping address once confirmming the problem. Buyer will be responsible for any risks or costs without our permission.
3. Buyer needs return the items by cheaper EMS or Post, or we can't get them because of restrict Customs Policy.
4. The Warranty Policy fits for all products except some products which state the warranty specially in description.


Warranty Item

Main Unit for Equipment 1 year warrnaty
Machine peripheral equipments and wire No warranty
Car diagnostic laptop 3 months
Data Hard Disk No warranty
Car software No warranty
Consumables No warranty



Technical Service:

1. If you have technical problem with the product you received from us, please contact us online or by email: Contact us

2. Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software from this link:  http://www.360diag.net/plus/list.php?tid=7, install it on your computer, then give us ID and password for remote help.

Customer Reviews

2 Item(s)

per page
works well. EDC17 ECU insignia reads. Review by Xander(Posted on 3/14/17)
Everything is fine! product matches the description! Review by Handyman(Posted on 3/10/17)

Write Your Own Review

You're reviewing: V2.13 KTAG K-TAG ECU Programming Tool Master Version Hardware V6.070 k tag Unlimited tokens free shipping

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Rank

Product Tags

Use spaces to separate tags. Use single quotes (') for phrases.
