UPA USB Serial Programmer Full Package V1.3 Popular Eeprom Universal Chip Programmer auto ECU Tool

ECU Tuning tool V1.3


:SM02
:
:

Special Price: $82.8913% 13%

Regular Price: $95.00

:
Buy It Now

Details

Product image display

Product Description



UPA USB UPAUSB UPA USB Serial Programmer Full Package V1.3



Descritpion:

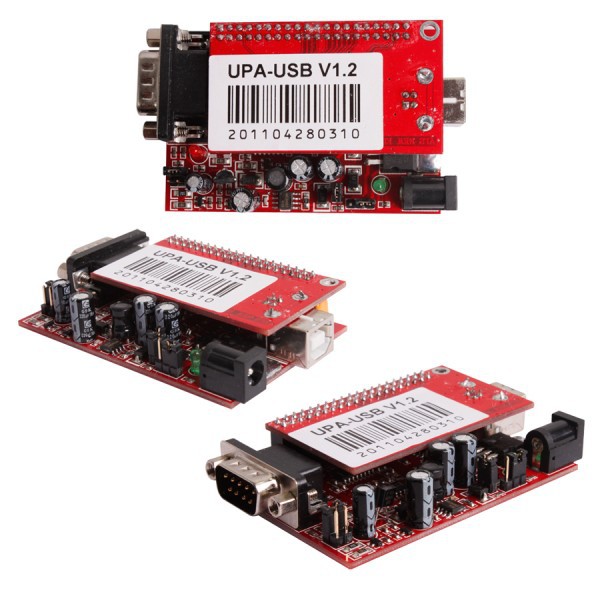

Upa-usb 2014 is the full set with all adapters, The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.

Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.

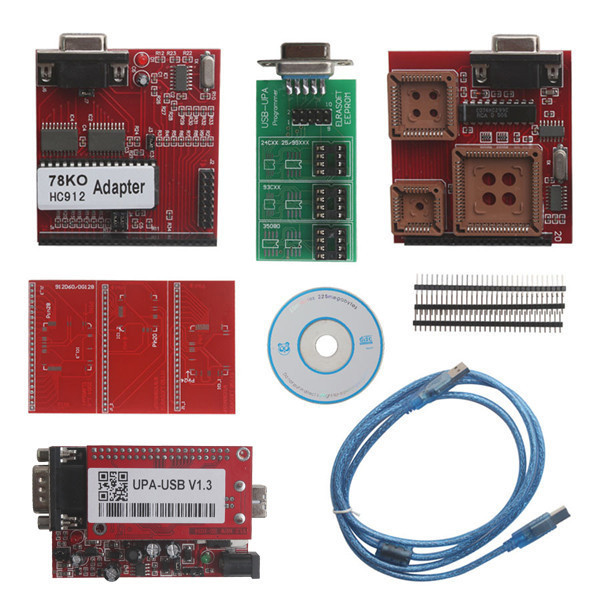

Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)


Support:


STMicroelectronics ST62*:

ST6240, ST6245, ST6249

NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9

Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32

Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A

Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8

Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A

Motorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256, MC9S12HZ64, MC9S12HZ128, MC9S12HZ256

Freescale (Motorola) HCS12X*: MC9S12XD64, MC9S12XD128, MC9S12XDG128, MC9S12XDP384, MC9S12XDP512, MC9S12XHZ256, MC9S12XHZ512

Freescale (Motorola) HCS12XE*: MC9S12XEG128, MC9S12XET256, MC9S12XEQ384, MC9S12XEQ512, MC9S12XEP768, MC9S12XEP100

Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253

Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313, ATmega8515, ATmega8535

Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675

Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)

EEPROMs I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01

EEPROMs Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46

EEPROMs SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045

EEPROMs Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102, 77005, 77007, BR9010, BR9020, BR9040, CAT64LC10, CAT64LC20, CAT64LC40, S-29190A, S-29290A ,S-29390A


Stocks Display Products

Customs clearance & Payment

Shipment terms

Return polices

Notes:

1. Be sure to disable/uninstall anti-virus software
Please note,anti-virus software can flag up this item software as having a virus. This is a false positive and is due to the software containing the application file. So Before setup the device software, please disable/uninstall anti-virus software or install a more reliable free virus scanner! Our this item software is completely safe and virus free and all other virus scanners confirm this.

If the software data is destroyed or lost because you forget to disable/uninstall anti-virus software, please contact our customer service, we arrange to resend you CD or send you the software via internet.

2. Required windows operation system is windows XP
Be sure to setup and run the device software under windows XP. Otherwise the device software and program can be broken or it will fail to work.
