Special Offer OEM Orange5 Professional Programming Device With Full Packet Hardware + Enhanced Function Software orange 5

Language: English and Russian

Systems: XP WIN7 WIN8

:SK68
:
$242.00
:
Buy It Now

Details

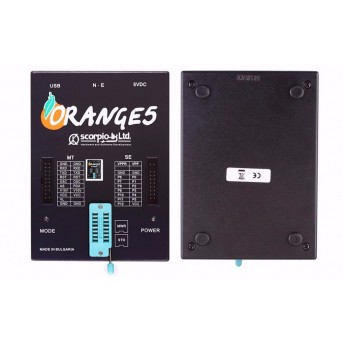

Orange5 Professional Programming Device With Full Packet Hardware + Enhanced Function Software



Software Version: V1.34, Software Does not Support Update.

Language: English and Russian

Systems: XP WIN7 WIN8

Software Licenses:

MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW


Orange5 Technical Info:

* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.


Feature:

Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

Orange-5 Chip list v1.34 [November 2015](Contact me for the details)


Packing List :

Orange-5 programmer 1
Power adapter 1
USBcable 1
Incircuit wire 10
SOIC8/DIP8 Expert adapter 1
SOIC8/DIP8 adapter 1
SOIC8_14_93Cxx adapter 1
SSOP8/DIP8 1
Lead with clips SOIC8 & DIP8 1
Adapter 05L28/05B 1
Adapter 908AS60/AZ60 QFP64 1
Adapter 68HC(7)05P3/E6 1
Adapter 05B/X_705B/X QFP64 V2 1
Adapter 11PA8/11E9 QFP64 1
Adapter 68HC05H12 1
Adapter 68HC11EA9 1
Adapter 908AS60 1
Adapter 9S12Dxx 1
Adapter 912Dxx 1
Adapter 9S12X 1
Adapter 912B32 QFP80 1
Adapter 68HC11F1 1
Adapter 68HC11L6 1
Adapter 68HC11KA4 1
Lead 11E9(20) with power 1
Lead for EWS3 mask 0D46J 1
Adapter TMS374C003A 1
Adapter MSP430F 1
Adapter 68HC11KA4 PLCC68 1
Adapter 908JL 1
Adapter PCF7941 1
Adapter 9S12XE 1

After-sales Service and warranty

Shipping Warranty:

We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.


DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Singpost/HongKong Airmail: 7- 20 working days. At most 45 days.

If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email: Contact us

Warrany Policy:

Problem Details Warranty Time Treatment Responsibility for Charge Remark
Quality Problem within 7 days after receiving package Buyer: Submit a complaint(Mail to sales360diag@hotmail.com ) and Return the items to Seller's assigned address by EMS or Post. Return Ship cost: Seller Any costs because of customer's wrong operation leads to return will be responsible by the buyers.
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 8-14 days after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 15 days to 1 year after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: Repair it. Repair Charge: Seller
Replace Parts Charge: Buyer
Lost in the delivery 30 days after shipping Buyer: Submit proof to seller New Product Cost: Seller
Seller: Contact carrier to ask for Claimant and arrange another shipment to buyer Resend Ship Cost: Seller
Customs Problem 30 days after shipping Buyer: Finish customs clearance when import Customs duties or agent fees: Buyer
Seller: Try to help buyer to finish customs clearance but not responsible on this.
Delivery Problems:
broken,incomplete,
wrong address
within 7 days after receiving package Buyer: Report to Seller,and sumbit Complaint to Carrier (DHL,TNT,UPS,EMS,etc..) in 7 days to get a Complaint number and send the number to Seller.After the seller's perpmit,return the full package in good condition to assigned address by EMS or Post. Caution: The Carrier will not accept Complaint after 7 days. Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: ask for compensation as per the Complaint number from Carrier ,not responsible for any losses after 7 days. Repair Charge: Seller
Replacement Charge: Buyer
Received wrong Items within 3 days after receiving package Buyer: Report to Seller,and return the full package in good condition to assigned address by EMS or Post in 3 days Return Ship cost: Seller
Seller: Arrange shipment for the correct items Resend ship cost: Seller
Man-made Damage: such as update machine online, dismantle the equipment, and so on within 1 year Buyer: Report to Seller,and return the items for repairing to assigned address by EMS or Post Return Ship cost: Buyer
Resend ship cost: Buyer
Repair Charge: Buyer
Replacement Charge: Buyer
Note: 1. Warranty Policy only protects Main parts.Other parts are out of our warranty policy.
2. Before return,please confirm with us. we will give you a shipping address once confirmming the problem. Buyer will be responsible for any risks or costs without our permission.
3. Buyer needs return the items by cheaper EMS or Post, or we can't get them because of restrict Customs Policy.
4. The Warranty Policy fits for all products except some products which state the warranty specially in description.


Warranty Item

Main Unit for Equipment 1 year warrnaty
Machine peripheral equipments and wire No warranty
Car diagnostic laptop 3 months
Data Hard Disk No warranty
Car software No warranty
Consumables No warranty



Technical Service:

1. If you have technical problem with the product you received from us, please contact us online or by email: Contact us

2. Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software from this link:  http://www.360diag.net/plus/list.php?tid=7, install it on your computer, then give us ID and password for remote help.
