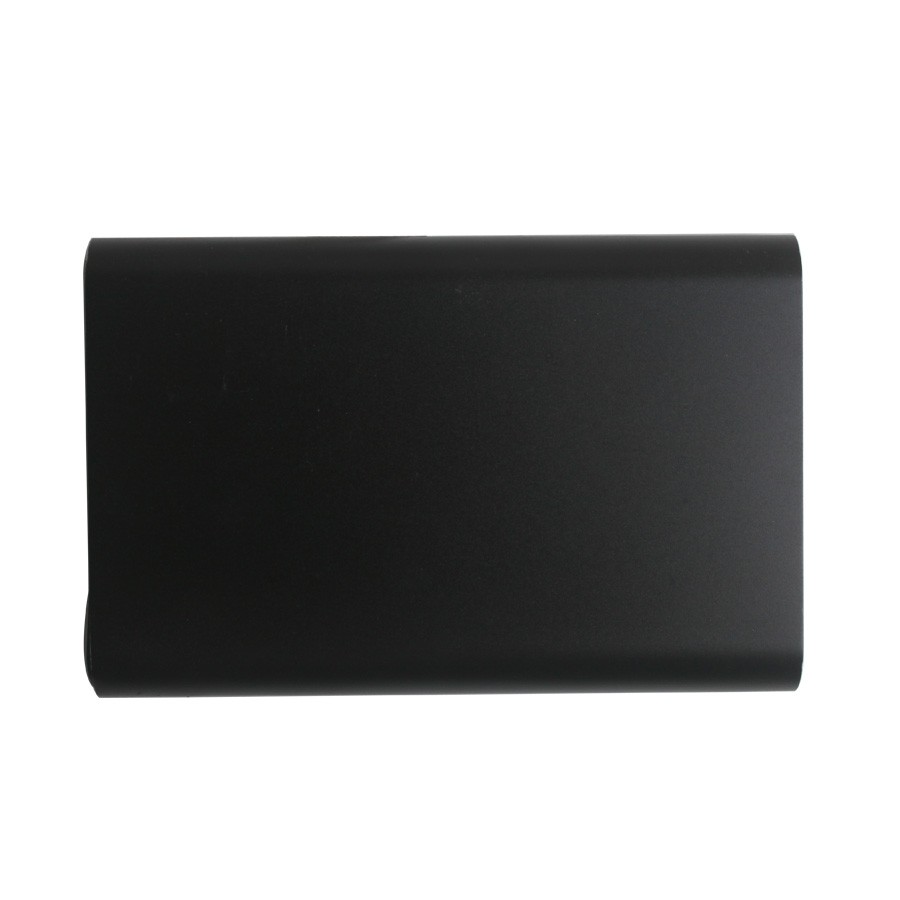

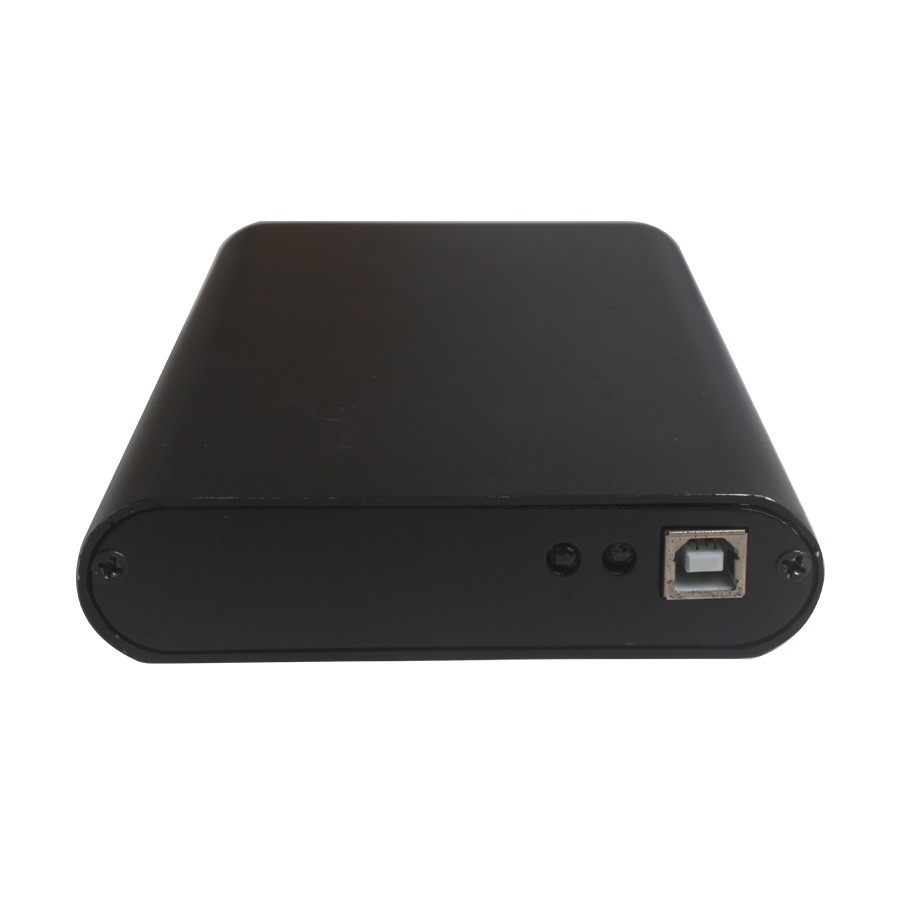

MAG PRO2 V4.1 OBD2 ECU TUNING TOOL
Top 4 Reason To Get MAG PRO2 V4.1:
1. Supported Languages: English, Spanish, Portuguese, Dutch, French, Polish, Italian, Magyar, Czech, etc
2. Supported Protocols: CAN-bus (ISO 15765-4 & SAE-J2234), K-line (ISO 9141-2 & ISO 14230-4) and FORD SAE J1850PWM) protocols. X17 support also TP2.0 and UDS protocols.
3. In most cases (euro4 & 5 vehicles) crc correction is automatic.
4. The sophisticated structure of the MAGPro2 offers the advanced functions of software (RECOVERY MODE) ensure accuracy of communication with the ECUs
Note:
1. Install Password: 12345678
2. Required OS: windows XP system
Description:

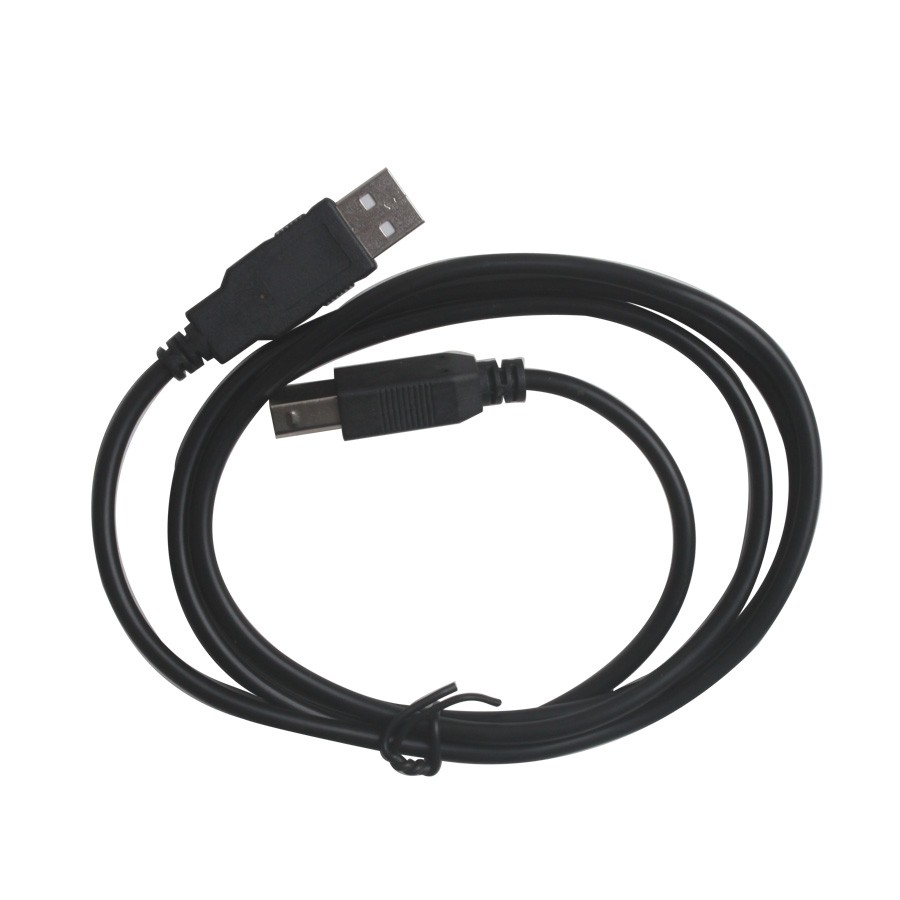

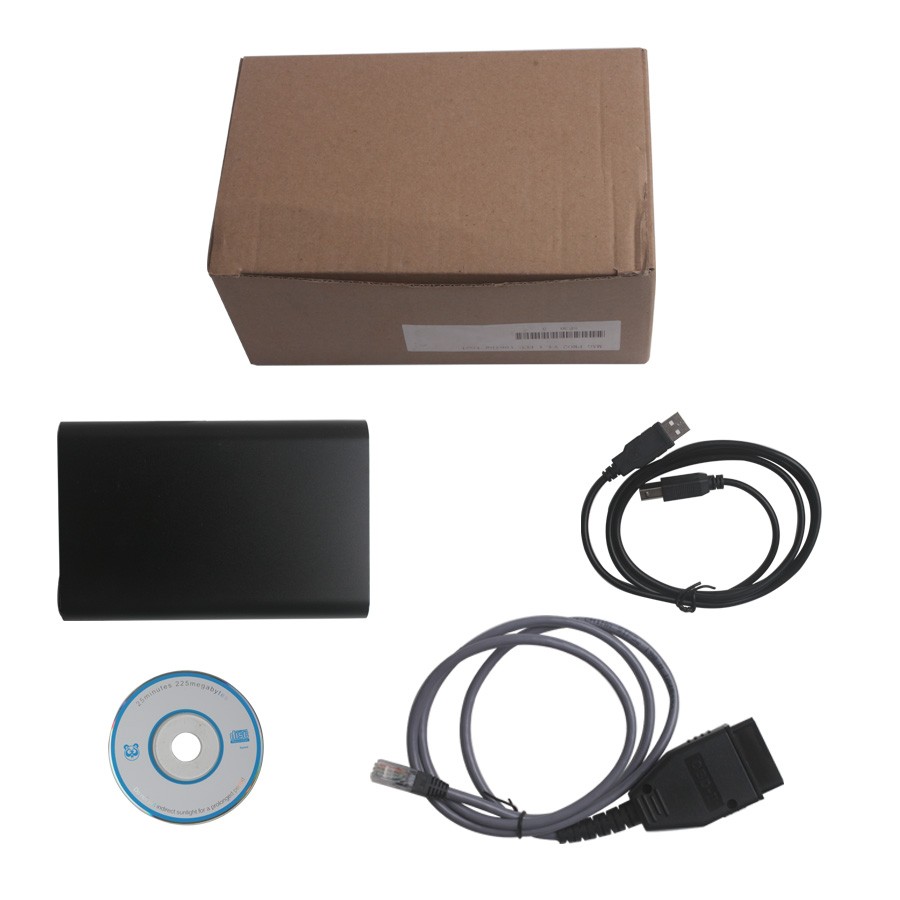

Thanks to wide range of accessories you can read / write by the OBDII diagnostic connection or by the dock (using the BREAKBOX). For cars with non-diagnostic socket OBDII, you have the specific cables.MAGPro2 offer injectors coding function for the cars of Renault, Nissan and PSA group (necessary after writing the modified file to ECU).
Functions:
1.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
ABARTH 500 II 1400 16V TJET 135CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
ABARTH 500 II 1400 16V TJET 155CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
ABARTH GRANDE PUNTO 1400 16V TJET 155CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
ABARTH GRANDE PUNTO 1400 16V TJET 180CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
MAGPRO2 BASE OBD2 x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
2.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
ALFA 145 1400 16V 103CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA 145 1600 16V 120CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA 145 1900 JTD 105CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
ALFA 145 2000 16V 155CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA 146 1900 JTD 105CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
ALFA 147 1600 16V 105CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 147 1600 16V 120CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 147 1900 JTD 100CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
ALFA 147 1900 JTD 115CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
ALFA 147 2000 16V 150CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 147 2000 16V 150CV SELESPEED BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 147 3200 V6 GTA 250CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 156 1600 16V 120CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA 156 1600 16V 120CV BOSCH ME7.3.1 YES YES YES NO NO NO NO NO NO
ALFA 156 1800 16V 141CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 156 1800 16V 144CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA 156 1900 JTD 105CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
ALFA 156 1900 JTD 110CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
ALFA 156 1900 JTD 115CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
ALFA 156 2000 16V 150CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 156 2000 16V 150CV SELESPEED BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 156 2000 16V 155CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA 156 2400 JTD 136CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
ALFA 156 2400 JTD 150CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
ALFA 156 2500 V6 191CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 156 3200 V6 GTA 250CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 166 2000 16V 150CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 166 2000 16V 155CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA 166 2400 JTD 136CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
ALFA 166 2400 JTD 150CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
ALFA 166 2500 V6 188CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 166 3000 V6 220CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 166 3200 V6 240CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA GTV 1800 16V 144CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA GTV 2000 16V 150CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA GTV 2000 16V 155CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
ALFA GTV 3000 V6 218CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
ALFA 147 1900 JTD 16V 140CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA 156 1900 JTD 16V 140CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA 156 1900 JTD 16V 150CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA 156 2400 JTD 20V 175CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA 166 2400 JTD 20V 175CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA CROSSWAGON 1900 JTD 16V 150CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA GT 1900 JTD 16V 150CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA 147 1900 JTD 16V 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA 159 1900 JTD 16V 136CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA 159 1900 JTD 16V 150CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA GT 1900 JTD 16V 150CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA 159 2400 JTD 16V 200CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA 147 1900 JTD 16V 150CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA BRERA 3.2 JTS 260CV BOSCH MED762 YES YES YES NO NO NO NO NO NO
ALFA 159 2.2 JTS MED761 185CV BOSCH MED761 YES YES YES NO NO NO NO NO NO
ALFA 159 2400 JTD 16V 210CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA BRERA 2400 JTD 16V 200CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA BRERA 2400 JTD 16V 210CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA 159 3.2 JTS 260CV BOSCH MED762 YES YES YES NO NO NO NO NO NO
ALFA MiTo 1400 16V TJET 155CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
ALFA MiTo 1600 MJ 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA MiTo 1400 16V TJET 120CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
ALFA MiTo 1400 16V 78CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
ALFA 147 1900 JTD 16V 150CV Q2 BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
ALFA SPORTWAGON 1900 JTD 16V 150CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
ALFA Giulietta 1600 JTDM 120CV BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
ALFA Giulietta 2000 JTDM 170CV BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
ALFA ALL MODELS BOSCH MED7.1.1 YES YES YES NO NO NO NO NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
3.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
AUDI A2 1400 TDI 75CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A2 1400 TDI 90CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A3 1800 20V 125CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A3 1800 20V TURBO 150CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A3 1800 20V TURBO 180CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A3 1800 20V TURBO 180CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A3 1900 TDI 101CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A3 1900 TDI 110CV BOSCH EDC15V YES YES NO NO NO NO NO NO NO
AUDI A3 1900 TDI 130CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A3 1900 TDI 90CV BOSCH EDC15V YES YES NO NO NO NO NO NO NO
AUDI A4 1800 20V 125CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A4 1800 20V 125CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A4 1800 20V TURBO 150CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A4 1800 20V TURBO 150CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A4 1800 20V TURBO 150CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A4 1800 20V TURBO 163CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A4 1800 20V TURBO 190CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A4 1900 TDI 101CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A4 1900 TDI 110CV BOSCH EDC15V YES YES NO NO NO NO NO NO NO
AUDI A4 1900 TDI 115CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A4 1900 TDI 130CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A4 1900 TDI 90CV BOSCH EDC15V YES YES NO NO NO NO NO NO NO
AUDI A4 2000 20V 130CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A4 2500 TDI V6 155CV BOSCH EDC15PV6 YES YES NO NO NO NO NO NO NO
AUDI A4 2500 TDI V6 163CV BOSCH EDC15PV6 YES YES NO NO NO NO NO NO NO
AUDI A4 2500 TDI V6 163CV BOSCH EDC15VM YES YES NO NO NO NO NO NO NO
AUDI A4 2500 TDI V6 180CV BOSCH EDC15PV6 YES YES NO NO NO NO NO NO NO
AUDI A4 2500 TDI V6 180CV BOSCH EDC15VM YES YES NO NO NO NO NO NO NO
AUDI A6 1800 20V 125CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A6 1800 20V TURBO BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A6 1800 20V TURBO 150CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A6 1800 20V TURBO 150CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A6 1800 20V TURBO 180CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A6 1900 TDI 101CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A6 1900 TDI 110CV BOSCH EDC15V YES YES NO NO NO NO NO NO NO
AUDI A6 1900 TDI 130CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
AUDI A6 2000 20V 130CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A6 2500 TDI V6 155CV BOSCH EDC15PV6 YES YES NO NO NO NO NO NO NO
AUDI A6 2500 TDI V6 163CV BOSCH EDC15VM YES YES NO NO NO NO NO NO NO
AUDI A6 2500 TDI V6 180CV BOSCH EDC15VM YES YES NO NO NO NO NO NO NO
AUDI A6 2500 TDI V6 180CV BOSCH EDC15PV6 YES YES NO NO NO NO NO NO NO
AUDI A8 2500 TDI V6 180CV BOSCH EDC15PV6 YES YES NO NO NO NO NO NO NO
AUDI A8 2800 V6 193CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A8 3700 V8 260CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI A8 4200 V8 340CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI S3 1800 20V TURBO 210CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI S3 1800 20V TURBO 210CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI S3 1800 20V TURBO 210CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI S4 2700 V6 BITURBO 265CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI S6 2700 V6 BITURBO 265CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI S6 4200 V8 326CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI TT 1800 20V TURBO 150CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI TT 1800 20V TURBO 150CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI TT 1800 20V TURBO 180CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI TT 1800 20V TURBO 180CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI TT 1800 20V TURBO 225CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI TT 1800 20V TURBO 225CV BOSCH ME7.5 NO YES YES NO NO NO NO NO NO
AUDI TT 1800 20V TURBO 225CV BOSCH ME7.5 YES YES YES NO NO NO NO NO NO
AUDI A2 1400 16V 75CV MARELLI IAW4MV YES YES NO NO NO YES NO NO NO
AUDI A3 1900 TDI 105CV BOSCH EDC16U YES YES NO NO NO YES YES NO NO
AUDI A3 2000 TDI 140CV BOSCH EDC16U YES YES NO NO NO YES YES NO NO
AUDI A4 1900 TDI 116CV BOSCH EDC16+U31 YES YES NO NO NO YES YES NO NO
AUDI A4 2000 TDI 140CV BOSCH EDC16+U31 YES YES NO NO NO YES YES NO NO
AUDI A4 2700 V6 TDI 204CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI A4 3000 V6 TDI 224CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI A4 2000 TDI 140CV BOSCH EDC16+U31CAN YES YES NO NO NO YES YES NO NO
AUDI A3 1900 TDI 105CV BOSCH EDC16+U34CAN YES YES NO NO NO YES YES NO NO
AUDI A3 2000 TDI 140CV BOSCH EDC16+U34CAN YES YES NO NO NO YES YES NO NO
AUDI A6 2000 TDI 136CV BOSCH EDC16+U31CAN YES YES NO NO NO YES YES NO NO
AUDI A6 2000 TDI 140CV BOSCH EDC16+U31CAN YES YES NO NO NO YES YES NO NO
AUDI A6 2700 V6 TDI 163CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI A6 2700 V6 TDI 180CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI A6 3000 V6 TDI 211CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI A6 3000 V6 TDI 224CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI A8 3000 V6 TDI 233CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI Q7 3000 V6 TDI 224CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI A4 2700 V6 TDI 204CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI A4 3000 V6 TDI 224CV BOSCH EDC16+CP34CAN YES YES NO NO NO YES YES NO NO
AUDI A3 1900 TDI 105CV BOSCH EDC16+U34 YES YES NO NO NO YES YES NO NO
AUDI A3 2000 TDI 140CV BOSCH EDC16+U34 YES YES NO NO NO YES YES NO NO
AUDI A4 1900 TDI 116CV BOSCH EDC16+U31CAN YES YES NO NO NO YES YES NO NO
AUDI A3 2000 20V TFSI 200CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI A3 2000 20V TFSI 256CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI S3 2000 20V TFSI 256CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI A3 2000 20V TFSI 265CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI A4 2000 20V TFSI 200CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI A4 2000 20V TFSI 220CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI TT (8J) 2000 20V TFSI 200CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI TTS (8J) 2000 20V TFSI 272CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI S4 4200 V8 FSI 253kw BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI A6 2000 20V TFSI 200CV BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI Q7 4200 V8 FSI 257kw BOSCH MED9.1 YES YES NO NO NO YES YES NO NO
AUDI RS4 2700 V6 BITURBO 380CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A4 2400 V6 170CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A4 2800 V6 193CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A4 3000 V6 220CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A6 2400 V6 170CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A6 2800 V6 193CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A6 4200 V8 300CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A8 3700 V8 260CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A8 4200 V8 340CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI S4 2700 V6 BITURBO 265CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI S6 2700 V6 BITURBO 265CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A3 3200 V6 250CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A6 3000 V6 220CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A6 4200 V8 300CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A6 4200 V8 300CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A8 4200 V8 335CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A8 4200 V8 340CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI S6 4200 V8 326CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI S8 4200 V8 360CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI TT 3200 V6 250CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A3 2000 TDI 170CV SIEMENS PPD1.2CAN YES YES NO YES NO YES YES NO NO
AUDI RS6 4200 V8 BITURBO 450CV BOSCH ME7.1 YES YES NO NO NO NO NO NO NO
AUDI A4 2000 TDI 170CV SIEMENS PPD1.3CAN YES YES NO YES NO YES YES NO NO
AUDI TT 3200 V6 250CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A4 2400 V6 170CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A4 2800 V6 193CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A4 3000 V6 220CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A6 2400 V6 170CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A6 2800 V6 193CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A6 4200 V8 300CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A8 3700 V8 260CV BOSCH ME7.1.1CAN YES YES NO NO NO NO NO NO NO
AUDI A8 4200 V8 340CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A3 3200 V6 250CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A6 3000 V6 220CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A6 4200 V8 300CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A6 4200 V8 300CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A8 4200 V8 335CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A8 4200 V8 340CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI S6 4200 V8 326CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI S8 4200 V8 360CV BOSCH ME7.1.1CAN YES YES YES NO NO NO NO NO NO
AUDI A6 2700 V6 TDI 163CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI A6 2700 V6 TDI 180CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI A6 2700 V6 TDI 211CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI A6 2700 V6 TDI 224CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI A8 3000 V6 TDI 233CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI Q7 2700 V6 TDI 224CV BOSCH EDC16+CP34 YES YES NO NO NO YES YES NO NO
AUDI A3 8P 1400 16V TFSI 125HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A3 8P 2000 16V TDI (CR) 140HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A3 8P 2000 16V TDI (CR) 170HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A3 8P 1400 16V TFSI 160HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A3 8P 2000 16V TFSI 200HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A4 2000 16V TFSI 180HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A4 2000 16V TFSI 211HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A4 B8 1800 16V TFSI 120HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A4 B8 1800 16V TFSI 160HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A4 B8 2000 16V TFSI 120HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A4 B8 2000 16V TFSI 160HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A4 B8 2000 16V TDI (CR) 143HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 B8 2000 16V TDI (CR) 136HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 B8 2000 16V TDI (CR) 120HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 B8 2000 16V TDI (CR) 170HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 B8 2700 16V TDI (CR) 190HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 B8 3000 16V TDI (CR) 240HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 ALLROAD 2000 16V TDI (CR) 143HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 ALLROAD 2000 16V TDI (CR) 170HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A4 ALLROAD 3000 16V TDI (CR) 240HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A5 1800 16V TFSI 160HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A5 1800 16V TFSI 170HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A5 2000 16V TFSI 180HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A5 2000 16V TFSI 211HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A5 2000 16V TDI (CR) 143HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A5 2000 16V TDI (CR) 170HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A5 2700 16V TDI (CR) 190HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A5 3000 16V TDI (CR) 240HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A6 3000 16V TFSI 290HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A6 3000 16V TFSI 290HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI A6 2000 16V TDI (CR) 136HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A6 2000 16V TDI (CR) 170HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A6 2700 16V TDI (CR) 190HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A6 3000 16V TDI (CR) 240HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A6 ALLROAD 2700 16V TDI (CR) 190HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI A6 ALLROAD 3000 16V TDI (CR) 240HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI Q5 2000 16V TFSI 180HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI Q5 2000 16V TFSI 211HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI Q5 2000 16V TDI (CR) 143HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI Q5 2000 16V TDI (CR) 170HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI Q5 3000 16V TDI (CR) 240HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI TT 1800 16V TFSI 160HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI TT 2000 16V TFSI 272HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI TT RS 2500 16V TFSI 336HP BOSCH MED17.x NO NO NO YES NO YES NO NO NO
AUDI TT 2000 16V TDI (CR) 170HP BOSCH EDC17 CP04/CP14 NO NO NO YES NO YES NO NO NO
AUDI ALL MODELS BOSCH ME7.5.20 NO NO YES NO NO NO NO NO NO
4.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
BMW 318 2000 D 115CV E46 1 Generation BOSCH EDC15M YES YES NO NO NO NO NO NO NO
BMW 520 2000 D 136CV E46 1 Generation BOSCH EDC15M YES YES NO NO NO NO NO NO NO
BMW 320 2000 D 136CV E46 BOSCH EDC15M YES YES NO NO NO NO NO NO NO
BMW 330 3000 D 186CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
BMW 525 2500 D 163CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
BMW 530 3000 D 186CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
BMW 530 3000 D 193CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
BMW 730 3000 D 186CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
BMW X5 3000 D 186CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
BMW X5 3000 D 193CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
BMW 320 2200 24V 170CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW 325 2500 24V 192CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW 328 2800 24V 193CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW 330 3000 24V 231CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW 530 2500 24V 192CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW 525 2500 24V 192CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW X5 3000 24V 231CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW Z3 3000 24V 231CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW 320 2000 24V 150CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW 323 2500 24V 170CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW 328 2800 24V 193CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW 520 2000 24V 150CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW 523 2500 24V 170CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW 528 2800 24V 193CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW 728 2800 24V 193CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW Z3 2800 24V 193CV SIEMENS MS42 YES YES NO NO NO NO NO NO NO
BMW Z3 2200 24V 170CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW Z3 3000 24V 231CV SIEMENS MS43 YES YES NO NO NO NO NO NO NO
BMW Z3 3200 M Roadster 343CV SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW Z8 5000 (E52) SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW M3 3200 E46 343CV SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW M5 5000 E39 394CV SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW 630 (E63) Cabrio 3.0L SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW 630 (E63) Coupe 3.0L SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW 645 (E63) Cabrio 4,4L SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW 645 (E63) Coupe 4,4L SIEMENS MS52-MS54 YES YES NO NO NO NO NO NO NO
BMW SIEMENS MSS60-65#L MPC563/4 NO NO NO NO NO NO YES NO NO
BMW ALL MODELS BOSCH ME9 MPC555/6 NO NO NO NO NO NO YES NO NO
BMW ALL MODELS SIEMENS MSS 60-65#R MPC563/4 NO NO NO NO NO NO YES NO NO
BMW ALL MODELS BOSCH ME9 BMSK MPC561/2 NO NO NO NO NO NO YES NO NO
BMW ALL MODELS SIEMENS MSV70 MPC563/4 NO NO NO NO NO NO YES NO NO
BMW ALL MODELS SIEMENS MS45.0 MPC555/6 NO NO NO NO NO NO YES NO NO
BMW ALL MODELS BOSCH ME9+ MPC563/4 NO NO NO NO NO NO YES NO NO
BMW E87 118 2000D 122HP2 BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E87 120 2000D 163HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW N47 118 2000D 143HP BOSCH EDC17C06 NO NO NO YES NO YES YES NO NO
BMW N47 120 2000D 177HP BOSCH EDC17CP02 NO NO NO YES NO YES NO NO NO
BMW N47 123 2000D 204HP BOSCH EDC17CP02 NO NO NO YES NO YES NO NO NO
BMW E46 318 2000D 115HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E46 320 2000D 150HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E46 330 3000D 204HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E90 318 2000D 122HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E90 318 2000D 143HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E90 320 2000D 163HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E90 325 3000D 197HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E90 330 3000D 231HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E90 330 3000XD 231HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E90 335 3000D 286HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E91 318 2000D 143HP BOSCH EDC17C06 NO NO NO YES NO YES YES NO NO
BMW E91 320 2000D 177HP BOSCH EDC17C06 NO NO NO YES NO YES YES NO NO
BMW E60 520 2000D 163HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E60 525 2500D 177HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E60 10 3000D 18HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E60 10 3000D 231HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E60 15 3000D 272HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E60 15 3000D 286HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E61 520 2000D 177HP BOSCH EDC17CP02 NO NO NO YES NO YES NO NO NO
BMW E63 635 3000D 286HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E65 730 3000D 18HP BOSCH EDC16 NO NO NO YES NO YES NO NO NO
BMW E65 730 3000D 231HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E65 740 3900D 258HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E65 745 4400D 329HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E70 X5 3000D 187HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E70 X5 3000D 235HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E70 X5 3000SD 286HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E71 X6 3000D 235HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E71 X6 3000D 285HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E83 X3 2000D 150HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E83 X3 2000D 177HP BOSCH EDC17CP02 NO NO NO YES NO YES NO NO NO
BMW E83 X3 3000D 204HP BOSCH EDC16 NO NO NO YES NO YES YES NO NO
BMW E83 X3 3000D 18HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
BMW E83 X3 3000SD 286HP BOSCH EDC16C35 NO NO NO YES NO YES YES NO NO
5.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
CADILAC BLS 1900 TID 16V 150CV BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
CADILAC BLS 1900 TID 16V 150cV BOSCH EDC16C9 NO YES NO NO NO YES YES NO NO
6.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
CHEVROLET CAPTIVA VCDI 150CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CHEVROLET ALL MODELS DELPHI MPC561/2 NO NO NO NO NO NO YES NO NO
7.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
CHRYSLER PT CRUISER 2200 CRD 121CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CHRYSLER VOYAGER 2500 CRD 142CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CHRYSLER 300C 3000 V6 CRD 218CV BOSCH EDC16+CAN YES YES NO NO NO YES YES NO NO
CHRYSLER 300C 3000 V6 Touring CRD 218CV BOSCH EDC16+CAN YES YES NO NO NO YES YES NO NO
CHRYSLER VOYAGER 2800 CRD 150CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CHRYSLER GRAND VOYAGER 2800 CRD 163CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
CHRYSLER VOYAGER 2800 CRD 163CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
CHRYSLER SEBRING 2000 CRD 140CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
CHRYSLER SEBRING 2000 CRD 140CV BOSCH EDC16+U31-4.72CAN YES YES NO NO NO YES YES NO NO
8.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
CITROEN BERLINGO 1600 16V 109CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN BERLINGO 2000 HDI 90CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN BERLINGO 2000 HDI 90CV SIEMENS SID801 NO YES NO NO NO NO NO NO NO
CITROEN C2 1100 12V 60CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN C2 1400 HDI 68CV SIEMENS SID802 NO YES NO NO NO NO NO NO NO
CITROEN C2 1400 HDI 68CV SIEMENS SID804 NO YES NO NO NO NO NO NO NO
CITROEN C2 1600 16V 109CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN C2 1600 16V 125CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN C3 1100 12V 60CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN C3 1400 16V 88CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN C3 1400 HDI 68CV SIEMENS SID802 NO YES NO NO NO NO NO NO NO
CITROEN C3 1600 16V 109CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN C5 2000 16V 137CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN C5 2000 HDI 109CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN C5 2000 HDI 90CV SIEMENS SID801 NO YES NO NO NO NO NO NO NO
CITROEN C5 2000 HDI 90CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN C5 2200 HDI 133CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN C5 3000 V6 207CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN C8 2000 HDI 109CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN C8 2200 HDI 133CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN EVASION 2000 HDI 110CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN JUMPY 2000 HDI 109CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN SAXO 1100 8V 60CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN SAXO 1600 16V 120CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN SAXO 1600 8V 98CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN XANTIA 2000 HDI 110CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN XANTIA 2000 HDI 90CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN XSARA 1600 16V 110CV BOSCH ME7.4.4 YES YES NO NO NO NO NO NO NO
CITROEN XSARA 1800 16V 116CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN XSARA 2000 16V 136CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN XSARA 2000 HDI 110CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN XSARA 2000 HDI 90CV SIEMENS SID801 NO YES NO NO NO NO NO NO NO
CITROEN XSARA 2000 HDI 90CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
CITROEN XSARA 1400 HDI 68CV BOSCH EDC16C0 YES YES NO NO NO YES YES NO NO
CITROEN XSARA 1600 HDI 110CV BOSCH EDC16C0 YES YES NO NO NO YES YES NO NO
CITROEN C2 1400 HDI 68CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C3 1400 HDI 68CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C4 1600 HDI 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C4 1600 HDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C5 1600 HDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN XSARA 1600 HDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C4 1400 16V 88CV MARELLI IAW6LP YES YES YES NO NO NO NO NO NO
CITROEN C5 2000 16V 137CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
CITROEN XSARA PICASSO 2000 16V 136CV MARELLI IAW6LP YES YES YES NO NO NO NO NO NO
CITROEN C4 2000 HDI 136CV SIEMENS SID803 NO YES NO NO NO YES YES NO NO
CITROEN C4 2000 HDI 136CV SIEMENS SID803A NO YES NO NO NO YES YES NO NO
CITROEN C5 2000 HDI 136CV SIEMENS SID803 NO YES NO NO NO YES YES NO NO
CITROEN C5 2000 HDI 136CV SIEMENS SID803A NO YES NO NO NO YES YES NO NO
CITROEN C2 1600 16V 125CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C2 1600 16V 108CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C2 1600 16V 122CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C3 1600 16V 108CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C4 1600 16V 108CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN BERLINGO 1600 16V 108CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C2 1400 HDI 68CV SIEMENS SID806 NO YES NO NO NO NO NO NO NO
CITROEN C3 1400 HDI 68CV SIEMENS SID806 NO YES NO NO NO NO NO NO NO
CITROEN C2 1600 16V 125CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C2 1600 16V 108CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C2 1600 16V 122CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C3 1600 16V 108CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C4 1600 16V 108CV BOSCH ME7.4.5 YES YES YES NO NO YES NO NO NO
CITROEN C4 1600 HDI 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C4 1600 HDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C3 1400 HDI 90CV DELPHI D6 YES YES NO NO NO YES NO NO NO
CITROEN JUMPY 2000 MJ 120CV SIEMENS SID803A YES YES NO NO NO YES YES NO NO
CITROEN C1 1400 HDI 54CV SIEMENS SID805/806 YES
YES NO NO NO NO NO NO
CITROEN C-CROSSER 2200 HDI 160CV BOSCH EDC16+CP39-6.70CAN YES YES NO NO NO YES YES NO NO
CITROEN C4 2000 HDI 136CV SIEMENS SID803A YES YES NO NO NO YES YES NO NO
CITROEN C5 2000 HDI 136CV SIEMENS SID803A NO YES NO NO NO YES YES NO NO
CITROEN C5 2000 HDI 140CV DELPHI DCM3.4 YES YES NO NO NO YES NO NO NO
CITROEN C4 2000 HDI 140CV DELPHI DCM3.4 YES YES NO NO NO YES NO NO NO
CITROEN JUMPER MJ 2200 100CV VISTEON DCU102 NO YES YES NO NO YES NO NO NO
CITROEN JUMPER MJ 2200 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN JUMPER MJ 3000 160CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
CITROEN C2 1400 8V 73CV JOHNSON VALEO YES YES NO NO NO YES NO NO NO
CITROEN C2 1100 8V 60CV JOHNSON VALEO YES YES NO NO NO YES NO NO NO
CITROEN Synergie 2000 HDI BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
9.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
DACIA LOGAN 1500 DCI 65CV DELPHI TRW YES YES NO NO NO NO YES NO NO
DACIA LOGAN 1500 DCI 82CV DELPHI TRW YES YES NO NO NO NO YES NO NO
DACIA LOGAN 1500 DCI 65CV DELPHI TWR YES YES NO NO NO NO YES NO NO
DACIA LOGAN 1500 DCI 82CV DELPHI TWR YES YES NO NO NO NO YES NO NO
DACIA LOGAN 1500 DCI 65CV DELPHI TWRCAN YES YES NO NO NO NO YES NO NO
DACIA LOGAN 1500 DCI 82CV DELPHI TWRCAN YES YES NO NO NO NO YES NO NO
DACIA SANDERO 1500 DCI 65CV DELPHI TWR YES YES NO NO NO NO YES NO NO
DACIA SANDERO 1500 DCI 82CV DELPHI TWR YES YES NO NO NO NO YES NO NO
DACIA SANDERO 1500 DCI 65CV DELPHI TWRCAN YES YES NO NO NO NO YES NO NO
DACIA SANDERO 1500 DCI 82CV DELPHI TWRCAN YES YES NO NO NO NO YES NO NO
10.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
DAEWOO LACETTI 2000 VCDi 150 CV BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
DAEWOO TOSCA 2000 VCDi 150 CV BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
DAEWOO VINDSTORM 2000 VCDi 150 CV BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
11.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
DAF-CUMMINS ALL MODELS BOSCH EDC7C-C1 MPC555/6 NO NO NO NO NO NO YES NO NO
DAF ALL MODELS DELPHI MPC561/2 NO NO NO NO NO NO YES NO NO
DEUTZ ALL MODELS BOSCH EDC16+ MPC561/2 NO NO NO NO NO NO YES NO NO
12.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
DODGE NITRO 2800 CRD 177CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
DODGE AVENGER 2000 CRD 140CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
DODGE AVENGER 2000 CRD 140CV BOSCH EDC16+U31-4.72CAN YES YES NO NO NO YES YES NO NO
DODGE CALIBER 2000 CRD 140CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
DODGE CALIBER 2000 CRD 140CV BOSCH EDC16+U31-4.72CAN YES YES NO NO NO YES YES NO NO
DODGE JOURNEY 2000 CRD 140CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
DODGE JOURNEY 2000 CRD 140CV BOSCH EDC16+U31-4.72CAN YES YES NO NO NO YES YES NO NO
13.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
DUCATI DUCATI 1000 MULTISTRADA MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
DUCATI DUCATI 999 MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
DUCATI DUCATI 999 MARELLI IAW59M YES YES NO NO NO NO NO NO NO
DUCATI DUCATI 1000 MULTISTRADA MARELLI IAW59M YES YES NO NO NO NO NO NO NO
DUCATI DUCATI 749S MARELLI IAW59M YES YES NO NO NO NO NO NO NO
DUCATI DUCATI 1098 MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
DUCATI DUCATI MONSTER 1000S MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
DUCATI DUCATI MONSTER 1000 S2R MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
DUCATI DUCATI MONSTER 800 S2R MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
DUCATI DUCATI MONSTER 1000 S4R MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
DUCATI DUCATI HYPERMOTARD MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
14.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
FAL ALL MODELS BOSCH EDC16 MPC555/6 NO NO NO NO NO NO YES NO NO
FAL ALL MODELS BOSCH EDC16+ MPC561/2 NO NO NO NO NO NO YES NO NO
FAL ALL MODELS SIEMENS SID 803A 5WS40320 MPC561/2 NO NO NO NO NO NO YES NO NO
15.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
FERRARI 360 MODENA 3600 V8 400CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
FERRARI YES NO YES NO NO NO NO NO
16.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
FIAT 600 1100 54CV MARELLI IAW59F YES YES NO NO NO NO NO NO NO
FIAT 600 1100 54CV MARELLI IAW4AF YES YES NO NO NO NO NO NO NO
FIAT BRAVO 1200 16V 80CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
FIAT BRAVO 1200 16V 82CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
FIAT BRAVO 1400 16V 100CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
FIAT BRAVO 1200 16V 82CV BOSCH M1.5.5 NO YES NO NO NO NO NO NO NO
FIAT BRAVO 1900 JTD 100CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT BRAVO 1900 JTD 105CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
FIAT BRAVO 2000 20V 155CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
FIAT DOBLO 1200 8V 65CV MARELLI IAW59F YES YES NO NO NO NO NO NO NO
FIAT DOBLO 1300 16V 75CV BOSCH ME2.1 YES YES NO NO NO NO NO NO NO
FIAT DOBLO 1300 MJ 16V 70CV MARELLI 6JF YES YES NO NO NO NO YES NO NO
FIAT DOBLO 1600 16V 105CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT DOBLO 1900 JTD 100CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT DUCATO 2000 8V 110CV MARELLI IAW48P2 YES YES NO NO NO NO NO NO NO
FIAT DUCATO 2000 JTD 84CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT DUCATO 2300 JTD 110CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT DUCATO 2800 JTD 127CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT DUCATO 2800 JTD 146CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT IDEA 1300 MJ 16V 70CV MARELLI 6JF YES YES NO NO NO NO YES NO NO
FIAT IDEA 1400 16V 95CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
FIAT IDEA 1400 16V 95CV BOSCH ME7.3H4 YES YES NO NO NO NO NO NO NO
FIAT MAREA 1900 JTD 100CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT MAREA 1900 JTD 105CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
FIAT MAREA 1900 JTD 110CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT MAREA 2400 JTD 136CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
FIAT MAREA 2400 JTD 150CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
FIAT MULTIPLA 1900 JTD 105CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
FIAT MULTIPLA 1900 JTD 110CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT MULTIPLA 1900 JTD 115CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT NEW PANDA 1100 8V 54CV MARELLI IAW5AF YES YES NO NO NO NO NO NO NO
FIAT NEW PANDA 1200 8V 60CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT NEW PANDA 1200 8V 60CV MARELLI IAW5AF YES YES NO NO NO NO NO NO NO
FIAT NEW PANDA 1300 MJ 16V 70CV MARELLI 6JF YES YES NO NO NO NO YES NO NO
FIAT PALIO 1000 8V 54CV MARELLI IAW4AF YES YES NO NO NO NO NO NO NO
FIAT PALIO 1000 8V 54CV MARELLI IAW59FB YES YES NO NO NO NO NO NO NO
FIAT PALIO 1200 8V 60CV MARELLI IAW4AF YES YES NO NO NO NO NO NO NO
FIAT PALIO 1200 8V 60CV MARELLI IAW59F YES YES NO NO NO NO NO NO NO
FIAT PALIO 1300 16V 82CV BOSCH ME2.1 YES YES NO NO NO NO NO NO NO
FIAT PALIO 1900 JTD 80CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT PALIO 1900 JTD 85CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT PANDA 1100 54CV MARELLI IAW59F YES YES NO NO NO NO NO NO NO
FIAT PANDA 1100 54CV MARELLI IAW4AF YES YES NO NO NO NO NO NO NO
FIAT PUNTO 1200 16V 80CV BOSCH ME7.3H4 YES YES NO NO NO NO NO NO NO
FIAT PUNTO 1200 8V 60CV E2 MARELLI IAW59F YES YES NO NO NO NO NO NO NO
FIAT PUNTO 1200 8V 60CV E3 MARELLI IAW5AF YES YES NO NO NO NO NO NO NO
FIAT PUNTO 1200 8V 60CV E3 MARELLI IAW59F YES YES NO NO NO NO NO NO NO
FIAT PUNTO 1300 MJ 16V 70CV MARELLI 6JF YES YES NO NO NO NO YES NO NO
FIAT PUNTO 1400 16V 95CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
FIAT PUNTO 1900 JTD 80CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
FIAT PUNTO 1900 JTD 85CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT SCUDO 2000 JTD 110CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
FIAT SCUDO 2000 JTD 94CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
FIAT SIENA 1300 16V 82CV BOSCH ME2.1 YES YES NO NO NO NO NO NO NO
FIAT STILO 1600 16V 103CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT STILO 1900 JTD 115CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT STILO 1900 JTD 80CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT STILO 2400 20V 160CV BOSCH ME7.3H4 YES YES NO NO NO NO NO NO NO
FIAT STRADA 1800 8V 105CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT STRADA 1900 JTD 80CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
FIAT ULYSSE 2000 JTD 110CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
FIAT ULYSSE 2200 JTD 128CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
FIAT IDEA 1900 JTD 100CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
FIAT PUNTO 1900 JTD 100CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
FIAT STILO 1900 JTD 16V 140CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
FIAT CROMA II 1900 JTD 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT CROMA II 1900 JTD 16V 150CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT STILO 1900 JTD 16V 150CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT PALIO 1000 16V 82CV BOSCH ME2.1 YES YES NO NO NO NO NO NO NO
FIAT MAREA 2400 20V 160CV BOSCH ME2.1 YES YES NO NO NO NO NO NO NO
FIAT PALIO ADVENTURE 1800 8V 105CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT PALIO 1000 8V FIRE 65CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT UNO 1000 8V FIRE 65CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT STRADA 1300 8V FIRE MARELLI IAW5NF YES YES NO NO NO NO NO NO
FIAT DOBLO 1800 8V 105CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT DOBLO ADVENTURE 1800 8V 105CV MARELLI IAW5NF YES YES NO NO NO NO NO NO NO
FIAT PALIO 1000 8V FLEX MARELLI IAW4SF NO YES YES NO NO NO NO NO NO
FIAT PALIO 1400 8V MARELLI IAW4SF NO YES YES NO NO NO NO NO NO
FIAT PALIO 1800 8V 114CV FLEX MARELLI IAW4SF NO YES YES NO NO NO NO NO NO
FIAT PALIO 1300 8V 73CV MARELLI IAW4AFB YES YES NO NO NO NO NO NO NO
FIAT PALIO 1400 8V 81CV MARELLI IAW4AFB YES YES NO NO NO NO NO NO NO
FIAT SIENA 1800 8V 114CVFLEX MARELLI IAW4SF NO YES YES NO NO NO NO NO NO
FIAT STRADA 1300 8V 73CV MARELLI IAW4AFB YES YES NO NO NO NO NO NO NO
FIAT MILLE 1000 8V 54CV MARELLI IAW4AF YES YES NO NO NO NO NO NO NO
FIAT CROMA II 2400 JTD 16V 200CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1900 JTD 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1900 JTD 130CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT STILO 1900 JTD 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT STILO 1600 IAW5SF3 NO NO YES NO NO NO NO NO NO
FIAT MULTIPLA II 1900 JTD 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1300 MJ 16V 75CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1300 MJ 16V 75CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1300 MJ 16V 90CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FIAT IDEA 1300 MJ 16V 90CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FIAT DOBLO 1300 MJ 16V 85CV MARELLI 6F3 YES YES NO NO NO YES YES NO NO
FIAT BRAVO II 1900 JTD 150CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT SEDICI 1900 JTD 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT SCUDO II 1600 HDI 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1900 JTD 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1900 JTD 130CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT DOBLO 1900 JTD 105CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT GRANDE PUNTO 1200 8V 65CV MARELLI IAW5SFHW300 NO YES YES NO NO NO NO NO NO
FIAT GRANDE PUNTO 1400 8V 77CV MARELLI IAW5SFHW300 NO YES YES NO NO NO NO NO NO
FIAT DUCATO MJ 2300 120CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT DUCATO MJ 2300 130CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT DUCATO MJ 3000 160CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT 500 II 1300 MJ 16V 75CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FIAT 500 II 1300 MJ 16V 75CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FIAT 500 II 1400 16V 100CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
FIAT GRANDE PUNTO 1400 16V TJET 120CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
FIAT BRAVO II 1400 16V TJET 150CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
FIAT SCUDO 2000 MJ 136CV SIEMENS SID803A YES YES NO NO NO YES YES NO NO
FIAT SCUDO 2000 MJ 120CV SIEMENS SID803A YES YES NO NO NO YES YES NO NO
FIAT BRAVO II 1600 MJE5 105CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT BRAVO II 1600 MJ 105CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FIAT DUCATO MJ 2200 100CV VISTEON DCU102 NO YES YES NO NO YES NO NO NO
FIAT 500 II 1200 8V 69CV MARELLI IAW5SFHW401 NO YES YES NO NO NO NO NO NO
FIAT FIORINO II QUBO 1300 MJ 16V 75CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FIAT FIORINO II QUBO 1300 MJ 16V 75CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
17.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
FORD GALAXY 1900 TDI 115CV BOSCH EDC15P YES YES NO NO NO NO NO NO NO
FORD GALAXY 1900 TDI 110CV BOSCH EDC15V YES YES NO NO NO NO NO NO NO
FORD FIESTA 1400 TDCI 68CV SIEMENS SID802 YES YES NO NO NO NO NO NO NO
FORD FIESTA 1400 TDCI 68CV SIEMENS SID804 YES YES NO NO NO NO NO NO NO
FORD FUSION 1400 TDCI 68CV SIEMENS SID802 YES YES NO NO NO NO NO NO NO
FORD FUSION 1400 TDCI 68CV SIEMENS SID804 YES YES NO NO NO NO NO NO NO
FORD FIESTA 1200 16V 70CV SIEMENS SIM210 YES YES NO NO NO NO NO NO NO
FORD FIESTA 1200 16V 70CV SIEMENS SIM22 YES YES NO NO NO NO NO NO NO
FORD FIESTA 1400 16V 80CV SIEMENS SIM210 YES YES NO NO NO NO NO NO NO
FORD FIESTA 1400 16V 80CV SIEMENS SIM22 YES YES NO NO NO NO NO NO NO
FORD FIESTA 1600 16V 101CV SIEMENS SIM22 YES YES NO NO NO NO NO NO NO
FORD FIESTA 1600 16V 101CV SIEMENS SIM24 YES YES NO NO NO NO NO NO NO
FORD FUSION 1400 16V 80CV SIEMENS SIM210 YES YES NO NO NO NO NO NO NO
FORD FUSION 1600 16V 101CV SIEMENS SIM22 YES YES NO NO NO NO NO NO NO
FORD KA 1600 16V 95CV SIEMENS SIM24 YES YES NO NO NO NO NO NO NO
FORD FOCUS 1600 TDCI 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FORD FOCUS 1600 TDCI 90CV BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 1600 TDCI 90CV BOSCH EDC16+ NO YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 1600 TDCI 90CV BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
FORD FOCUS 1600 TDCI 110CV BOSCH EDC16+ NO YES NO NO NO YES YES NO NO
FORD FOCUS 1600 TDCI 110CV BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 1600 TDCI 110CV BOSCH EDC16+ NO YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 1600 TDCI 110CV BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 2000 TDCI 136CV SIEMENS SID803 YES YES NO NO NO YES YES NO NO
FORD FOCUS 2000 TDCI 136CV SIEMENS SID803 YES YES NO NO NO YES YES NO NO
FORD FOCUS 1800 TDCI 115CV SIEMENS SID202 YES YES NO NO NO YES YES NO NO
FORD FIESTA 1600 TDCI 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FORD FOCUS 1600 TDCI 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 1600 TDCI 90CV BOSCH EDC16+ NO YES NO NO NO YES YES NO NO
FORD FOCUS 1600 TDCI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
FORD FOCUS 1800 16V 125CV SIEMENS SIM29 YES YES NO NO NO NO NO NO NO
FORD TRANSIT 2200 TDI VISTEON FOMOCO YES YES NO NO NO YES NO NO NO
FORD TRANSIT 2400 TDI VISTEON FOMOCO YES YES NO NO NO YES NO NO NO
FORD TRANSIT SIEMENS SID 206 5WS40483 MPC561/2 NO NO NO NO NO NO YES NO NO
FORD FOCUS 2000 TDCI 136CV SIEMENS SID803A YES YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 1800 TDCI 115CV SIEMENS SID202 YES YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 2000 TDCI 136CV SIEMENS SID803A YES YES NO NO NO YES YES NO NO
FORD S-MAX 2000 TDCI 140CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD S-MAX 1800 TDCI 125CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD GALAXY 2000 TDCI 130CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD GALAXY 1800 TDCI 125CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD GALAXY 1800 TDCI 100CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD MONDEO 2000 TDCI 130CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD MONDEO 1800 TDCI 125CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD MONDEO 2000 TDCI 140CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD KUGA 2000 TDCI 136CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD FOCUS 2000 TDCI 136CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD FOCUS C-MAX 2000 TDCI 136CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD FOCUS 1600 16V 115CV SIEMENS SIM29 YES YES NO NO NO NO NO NO NO
FORD FIESTA NEW '08 1400 TDCI 68CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
FORD FIESTA NEW '08 1200 16V 82CV EMS29F400BBPSOP YES YES NO NO NO NO NO NO NO
FORD KA II 1300 MJ 16V 75CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
FORD FIESTA NEW '08 1400 16V 96CV EMS 29F800BBPSOP YES YES NO NO NO NO NO NO NO
FORD FIESTA NEW '08 1600 16V Ti-VCT 120CV EMS 29F800BBPSOP YES YES NO NO NO NO NO NO NO
FORD FOCUS 1600 16V Ti-VCT 115CV EMS 29F800BBPSOP YES YES NO NO NO NO NO NO NO
FORD GALAXY 2800 24V BOSCH ME7.1-1M YES YES NO NO NO NO NO NO NO
FORD GALAXY 2800 24V BOSCH ME7.1-1MCAN YES YES NO NO NO NO NO NO NO
FORD ALL MODELS BOSCH ME9 MPC561/2 NO NO NO NO NO NO YES NO NO
FORD ALL MODELS DELPHI MPC555/6 NO NO NO NO NO NO YES NO NO
18.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
GILERA GP 800 75CV MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
19.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
GM MONTANA 1800 8V DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM ASTRA 1800 8V 90CV BOSCH M1.5.5 YES YES NO NO NO NO NO NO NO
GM ASTRA 2000 8V 115CV BOSCH M1.5.5 YES YES NO NO NO NO NO NO NO
GM ZAFIRA 2000 8V 115CV BOSCH M1.5.5 YES YES NO NO NO NO NO NO NO
GM ZAFIRA 2000 16V 136CV BOSCH M1.5.5 YES YES NO NO NO NO NO NO NO
GM ASTRA 2000 16V 136CV BOSCH M1.5.5 YES YES NO NO NO NO NO NO NO
GM CELTA 1000 8V DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM CELTA 1400 8V DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM CORSA 1800 8V 100CV DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM CORSA 1000 12V 60CV DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM CORSA 1800 8V 100CV DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM MERIVA 1800 16V 125CV DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM MERIVA 1800 8V 100CV DELCO MULTEC YES YES NO NO NO NO NO NO NO
GM OMEGA 3600 V6 BOSCH ME9.X YES YES NO NO NO YES NO NO NO
20.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
GUZZI GRISO 850 76CV MARELLI IAW5AM YES YES NO NO NO NO NO NO NO
21.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
HONDA CIVIC 1700 CTDI 101CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HONDA CIVIC 1700 CTDI 80CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HONDA ALL MODELS BOSCH EDC16 MPC555/6 NO NO NO NO NO NO YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
22.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
HYUNDAI ACCENT 1500 CRDI 82CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI GETZ 1500 CRDI 82CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI MATRIX 1500 CRDI 82CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI SANTAFE' 2000 CRDI 112CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI SANTAFE' 2000 CRDI 125CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI SANTAFE' 2000 CRDI 140CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI TRAJET 2000 CRDI 112CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI TUCSON 2000 CRDI 112CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI TERRACAN 2900 CRDI 163CV BOSCH DDCRDELPHI YES YES NO NO NO NO NO NO NO
HYUNDAI H1 2500 CRDI BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
HYUNDAI I30 1600 CRDI 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
HYUNDAI I30 1600 CRDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
HYUNDAI SANTAFE' 2200 CRDI BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
HYUNDAI GETZ 1500 CRDI BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
HYUNDAI TUCSON 2000 CRDI BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
HYUNDAI ACCENT 1500 CRDI BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
HYUNDAI Elantra 2000 CRDI BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
HYUNDAI SONICA 2000 CRDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
23.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
ISUZU D-MAX 2500 DTI 101CV BOSCH EDC15M NO YES NO NO NO NO NO NO NO
ISUZU ALL MODELS DELPHI MPC561/2 NO NO NO NO NO NO YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
24.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
IVECO TECTOR BOSCH EDC7C1-C2 MPC555/6 NO NO NO NO NO NO YES NO NO
IVECO STRALIS BOSCH EDC7U31 MPC561/2 NO NO NO NO NO NO YES NO NO
IVECO DAILY BOSCH EDC 16+ MPC561/2 NO NO NO NO NO NO YES NO NO
IVECO DAILY BOSCH EDC16 MPC555/6 NO NO NO NO NO NO YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
25.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
JAGUAR ALL MODELS DELPHI MPC555/6 NO NO NO NO NO NO YES NO NO
JAGUAR ALL MODELS SIEMENS SID201-SID2045WS-40xxx MPC563/4 NO NO NO NO NO NO YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
26.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
JEEP CHEROKEE 2500 CRD 143CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
JEEP GRAND CHEROKEE 2700 CRD 163CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
JEEP CHEROKEE 2800 CRD 163CV BOSCH EDC16C31 YES YES NO NO NO YES YES NO NO
JEEP GRAND CHEROKEE 3000 CDI 218CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
JEEP GRAND CHEROKEE 3000 CDI 218CV BOSCH EDC16+CAN YES YES NO NO NO YES YES NO NO
JEEP COMPASS 2000 CRD 140CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
JEEP WRANGLER 2800 CRD 177CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
JEEP COMPASS 2000 CRD 140CV BOSCH EDC16+U31-4.72CAN YES YES NO NO NO YES YES NO NO
JEEP CHEROKEE 2800 CRD 177CV BOSCH EDC16+CP31CAN YES YES NO NO NO YES YES NO NO
JEEP CJ7 2500 CRD 143CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
JEEP Commander 3000 CRD BOSCH EDC16CP31-8CAN YES YES NO NO NO YES YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
27.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
KIA CARENS 2000 CRDI 102CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
KIA CARENS 2000 CRDI BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
KIA CERATO 1500 CRDI 102CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
KIA SORENTO 2500 CRDI 140CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
KIA CARNIVAL 2900 CRDI 144CV DELPHI DDCR YES YES NO NO NO NO YES NO NO
KIA CARENS 1500 CRDI BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
KIA CEE'D 1600 CRDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
KIA CERATO 2000 CRDI BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
KIA SPORTAGE 2000 CRDI 140CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
KIA SORENTO 2500 CRDI 170CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
KIA PICANTO 1100 CRDI BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
KIA RIO 1500 CRDI 110CV BOSCH EDC16C39 YES YES NO NO NO YES YES NO NO
KIA SONICA 2000 CRDI 110CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
28.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
LANCIA K 2000 20V 155CV BOSCH ME7.3H4 YES YES NO NO NO NO NO NO NO
LANCIA K 2400 JTD 136CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
LANCIA LYBRA 1900 JTD 105CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
LANCIA LYBRA 1900 JTD 110CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
LANCIA LYBRA 1900 JTD 115CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
LANCIA LYBRA 2000 20V 150CV BOSCH ME7.3H4 YES YES NO NO NO NO NO NO NO
LANCIA LYBRA 2400 JTD 136CV BOSCH EDC15C YES YES NO NO NO NO NO NO NO
LANCIA LYBRA 2400 JTD 150CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
LANCIA MUSA 1300 MJ 16V 70CV MARELLI 6JF YES YES NO NO NO NO YES NO NO
LANCIA MUSA 1400 16V 95CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
LANCIA MUSA 1600i IAW5SF3 NO NO YES NO NO NO NO NO NO
LANCIA PHEDRA 2000 JTD 109CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
LANCIA PHEDRA 2200 JTD 128CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
LANCIA THESIS 2000 20V TURBO 185CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
LANCIA THESIS 2400 JTD 150CV BOSCH EDC15C7 YES YES NO NO NO NO NO NO NO
LANCIA THESIS 3000 V6 215CV BOSCH ME7.3H4 YES YES NO NO NO NO NO NO NO
LANCIA THESIS 3200 V6 230CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
LANCIA Y 1200 16V 80CV BOSCH ME7.3H4 YES YES NO NO NO NO NO NO NO
LANCIA Y 1200 8V 60CV MARELLI IAW59F YES YES NO NO NO NO NO NO NO
LANCIA Y 1200 8V 60CV MARELLI IAW5AF YES YES NO NO NO NO NO NO NO
LANCIA Y 1300 MJ 16V 70CV MARELLI 6JF YES YES NO NO NO NO YES NO NO
LANCIA Y 1400 16V 95CV BOSCH ME7.3.1 YES YES NO NO NO NO NO NO NO
LANCIA Z 2000 JTD 109CV BOSCH EDC15C2 YES YES NO NO NO NO NO NO NO
LANCIA MUSA 1900 JTD 100CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
LANCIA THESIS 2400 JTD 20V 175CV BOSCH EDC16C8 YES YES NO NO NO YES YES NO NO
LANCIA PHEDRA 2000 MJ 136CV SIEMENS SID803A YES YES NO NO NO YES YES NO NO
LANCIA MUSA 1300 MJ 16V 90CV MARELLI 6F3 YES YES NO NO NO YES YES NO NO
LANCIA MUSA 1300 MJ 16V 90CV MARELLI 6F3 NO YES NO NO NO YES YES NO NO
LANCIA DELTA 1400 TJet 16V 120 CV BOSCH ME7.9.10 NO YES YES NO NO YES NO NO NO
LANCIA DELTA 1900 JTD 16V 165CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
LANCIA DELTA 1900 MJT 16V TWINTURBO 190CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
LANCIA DELTA 1600 MJT BOSCH EDC16C39 YES YES NO NO NO YES NO NO NO
MAGPRO2 BASE OBD2
x17
MAGPro2/x17 BDM Immo-off DPF-OFF
MAKE MODEL ECU TYPE OBD OBD BOOTLOADER OBD BOOTLOADER CHECKSUMM
29.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
LANDROVER DISCOVERY 2500 TD5 122CV ROVER MEMS3 YES YES NO NO NO NO NO NO NO
LANDROVER DISCOVERY 2500 TD5 138CV ROVER MEMS3 YES YES NO NO NO NO NO NO NO
LANDROVER FREELANDER 2000 TD4 136CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
LANDROVER RANGEROVER 3000 TD6 177CV BOSCH EDC15C4 YES YES NO NO NO NO NO NO NO
LANDROVER DEFENDER 2500 TD5 138CV ROVER MEMS3 YES YES NO NO NO NO NO NO NO
LANDROVER DISCOVERY 2700 TD V6 190CV ROVER SIEMENS SID20X YES YES NO NO NO YES NO NO NO
LANDROVER RANGEROVER 2700 TD V6 190CV ROVER SIEMENS SID20X YES YES NO NO NO YES NO NO NO
LANDROVER RANGEROVER 3600 TD V8 272CV ROVER SIEMENS SID203 YES YES NO NO NO YES YES NO NO
LANDROVER DEFENDER 90 2400 TDI VISTEON FOMOCO YES YES NO NO NO YES NO NO NO
LANDROVER FREELANDER II 2200 TD4 160CV BOSCH EDC16CP39 YES YES NO NO NO YES NO NO NO
LAND ROVER ALL MODELS SIEMENS SID-SID2045WS40xxx MPC563/4 NO NO NO NO NO NO YES NO NO
LAND ROVER ALL MODELS BOSCH EDC16+ MPC563/4 NO NO NO NO NO NO YES NO NO
30.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
MAN ALL MODELS BOSCH EDC7C3 MP555/6 NO NO NO NO NO NO YES NO NO
MAHINDRA ALL MODELS BOSCH EDC16 MPC555/6 NO NO NO NO NO NO YES NO NO
31.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
MAZDA MAZDA 2 (DE) 1300 MZR 75CV SIEMENS SIM210 YES YES NO NO NO NO NO NO NO
MAZDA MAZDA 2 (DE) 1300 MZR 75CV SIEMENS SIM210v2 YES YES NO NO NO NO NO NO NO
MAZDA MAZDA 2 (DE) 1300 MZR 86CV SIEMENS SIM210 YES YES NO NO NO NO NO NO NO
MAZDA MAZDA 2 (DE) 1300 MZR 86CV SIEMENS SIEM8XX YES YES NO NO NO NO NO NO NO
MAZDA MAZDA 2 (DE) 1400 TDCi 68CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
MAZDA MAZDA 2 (DY) 1400 TDCi 68CV SIEMENS SID80X YES YES NO NO NO NO NO NO NO
MAZDA MAZDA 3 (BK) 1600 16V TD 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
MAZDA MAZDA 3 (BK) 1600 16V TD 90CV BOSCH EDC16+ YES YES NO NO NO YES YES NO NO
MAZDA MAZDA 3 (BK) 1600 16V TD 90CV BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
MAZDA MAZDA 3 (BK) 1600 16V TD 110CV BOSCH EDC16+C34 YES YES NO NO NO YES YES NO NO
MAZDA MAZDA 3 (BK) 1600 16V TD 110CV BOSCH EDC16+C34 YES YES NO NO NO YES YES NO NO
MAZDA MAZDA 3 (BK) 1600 16V TD 110CV BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
MAZDA MAZDA 3 (BL) 1600 16V TD 110CV BOSCH EDC16C3 YES YES NO NO NO YES YES NO NO
MAZDA MAZDA DEMIO (DE) 1300 MZR 75CV SIEMENS SIM210 YES YES NO NO NO NO NO NO NO
MAZDA MAZDA DEMIO (DE) 1300 MZR 75CV SIEMENS SIM210v2 YES YES NO NO NO NO NO
MAZDA MAZDA DEMIO (DE) 1300 MZR 86CV SIEMENS SIM210 YES YES NO NO NO NO NO NO NO
MAZDA MAZDA DEMIO (DE) 1300 MZR 86CV SIEMENS SIM210v2 YES YES NO NO NO NO NO NO NO
MAZDA MAZDA DEMIO (DE) 1400 TDCi 68CV SIEMENS SID206 YES YES NO NO NO YES YES NO NO
MAZDA MAZDA DEMIO (DY) 1400 TDCi 68CV SIEMENS SID80X YES YES NO NO NO NO NO NO NO
32.READ WRITE READ/WRITE READ/WRITE READ/WRITE AUTOMATIC READ/WRITE
MERCEDES A 160 1700 CDI 60CV BOSCH EDC15C0 YES YES NO NO NO NO NO NO NO
MERCEDES A 160 1700 CDI 75CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES A 170 1700 CDI 90CV BOSCH EDC15C0 YES YES NO NO NO NO NO NO NO
MERCEDES A 170 1700 CDI 95CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES C 200 2200 CDI 102CV BOSCH EDC15C0 YES YES NO NO NO NO NO NO NO
MERCEDES C 200 2200 CDI 115CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES C 220 2200 CDI 125CV BOSCH EDC15C0 YES YES NO NO NO NO NO NO NO
MERCEDES C 220 2200 CDI 136CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES C 220 2200 CDI 143CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES C 270 2700 CDI 170CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES C 30 3000 CDI AMG 231CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES CLK 270 2700 CDI 170CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES E 200 2200 CDI 115CV BOSCH EDC15C6 YES YES NO NO NO NO NO NO NO
MERCEDES E 220 220
Shipping Warranty:
We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Singpost/HongKong Airmail: 7- 20 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email: Contact us
Warrany Policy:
| Problem Details | Warranty Time | Treatment | Responsibility for Charge | Remark |
| Quality Problem | within 7 days after receiving package | Buyer: Submit a complaint(Mail to sales360diag@hotmail.com ) and Return the items to Seller's assigned address by EMS or Post. | Return Ship cost: Seller | Any costs because of customer's wrong operation leads to return will be responsible by the buyers. |
| Resend ship cost: Seller | ||||
| Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) | Repair Charge: Seller | |||
| Replace Parts Charge: Seller | ||||
| within 8-14 days after receiving package | Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing | Return Ship cost: Buyer | ||
| Resend ship cost: Seller | ||||
| Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) | Repair Charge: Seller | |||
| Replace Parts Charge: Seller | ||||
| within 15 days to 1 year after receiving package | Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing | Return Ship cost: Buyer | ||
| Resend ship cost: Buyer | ||||
| Seller: Repair it. | Repair Charge: Seller | |||
| Replace Parts Charge: Buyer | ||||
| Lost in the delivery | 30 days after shipping | Buyer: Submit proof to seller | New Product Cost: Seller | |
| Seller: Contact carrier to ask for Claimant and arrange another shipment to buyer | Resend Ship Cost: Seller | |||
| Customs Problem | 30 days after shipping | Buyer: Finish customs clearance when import | Customs duties or agent fees: Buyer | |
| Seller: Try to help buyer to finish customs clearance but not responsible on this. | ||||
| Delivery Problems: broken,incomplete, wrong address |
within 7 days after receiving package | Buyer: Report to Seller,and sumbit Complaint to Carrier (DHL,TNT,UPS,EMS,etc..) in 7 days to get a Complaint number and send the number to Seller.After the seller's perpmit,return the full package in good condition to assigned address by EMS or Post. Caution: The Carrier will not accept Complaint after 7 days. | Return Ship cost: Buyer | |
| Resend ship cost: Buyer | ||||
| Seller: ask for compensation as per the Complaint number from Carrier ,not responsible for any losses after 7 days. | Repair Charge: Seller | |||
| Replacement Charge: Buyer | ||||
| Received wrong Items | within 3 days after receiving package | Buyer: Report to Seller,and return the full package in good condition to assigned address by EMS or Post in 3 days | Return Ship cost: Seller | |
| Seller: Arrange shipment for the correct items | Resend ship cost: Seller | |||
| Man-made Damage: such as update machine online, dismantle the equipment, and so on | within 1 year | Buyer: Report to Seller,and return the items for repairing to assigned address by EMS or Post | Return Ship cost: Buyer | |
| Resend ship cost: Buyer | ||||
| Repair Charge: Buyer | ||||
| Replacement Charge: Buyer | ||||
| Note: | 1. Warranty Policy only protects Main parts.Other parts are out of our warranty policy. | |||
| 2. Before return,please confirm with us. we will give you a shipping address once confirmming the problem. Buyer will be responsible for any risks or costs without our permission. | ||||
| 3. Buyer needs return the items by cheaper EMS or Post, or we can't get them because of restrict Customs Policy. | ||||
| 4. The Warranty Policy fits for all products except some products which state the warranty specially in description. | ||||
Warranty Item
| Main Unit for Equipment | 1 year warrnaty |
| Machine peripheral equipments and wire | No warranty |
| Car diagnostic laptop | 3 months |
| Data Hard Disk | No warranty |
| Car software | No warranty |
| Consumables | No warranty |
Technical Service:
1. If you have technical problem with the product you received from us, please contact us online or by email: Contact us
2. Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software from this link: http://www.360diag.net/plus/list.php?tid=7, install it on your computer, then give us ID and password for remote help.
Customer Reviews
2 Item(s)
per page
-
Quality looks good, item as described. Review by Dmitry H.(Posted on 8/21/15) -
The quality is good.Besides,the price is nice. Review by S***r S(Posted on 8/20/15)
Write Your Own Review
Estimate Shipping
Enter your destination to get a shipping estimate.
My Cart
You have no items in your shopping cart.
Compare Products
You have no items to compare.
© 2003-2017 kingbolen.com All Rights Reserved.
