Launch X431 Diagun IV Powerful Diagnostic Tool with 2 year Free Update X-431 Diagun IV better than diagun iii/3 as X431 IV

2 Years Free update online

:SP42-A
:
:

Special Price: $639.0014% 14%

Regular Price: $739.00

:
Buy It Now

Details

Top Reason to choose X431 Diagun IV:



1, 2017 Diagun Latest version : Diagun IV

2, With Android 7.0 system, support wifi one-click update

3, Handset, Easy to operate, avoid broken or lost bluetooth adpater.

4, SD Card storage: 16GB Storage,Enough room to download all software you want

5, Add Special Function: Brake Reset,Oil Reset,SAS Reset,BAT.Reset,Bleeding,Elec.TH Tottle 6,Rottle Rlrn, TPMS Reset, DPF REG.IMMO,Injector

7, 2 Years Free update online

8, Multi-language, easy to change the language by yourself.

9, Language including: English,Spanish,French,Russian,Japanese,Arabic,Korean,Italian,German,

    Danish,polish,Finnish,Dutch,Czech,Portuguese,Swedish,Turkish,Greek,Hungarian,Romanian,Serbian.

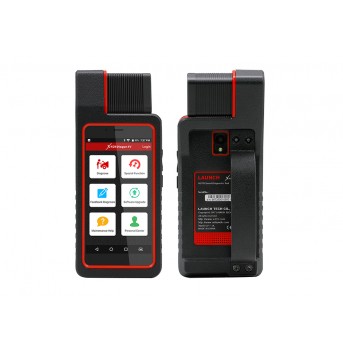

X-431 Diagun IV is an slim evolutionary vehicle diagnostic tool. Featuring a quad-core 1.1GHz processor, and a 5.5 inch capacitive screen, X-431 Diagun IV delivers diagnostic functionality which helps to diagnose vehicle issues more efficiently.

In addition, X-431 Diagun IV supports Wi-Fi connection, one-click update, diagnostic feedback and all kinds of service functions (including oil lamp reset etc).







Features:



1.Diagnostics:

  A.Diagnose

    *Diagnose the electronic control systems of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs and Read data stream etc.

    *Specially designed for Android platform with clear and user-friendly interface.

    *Via Bluetooth, it is simple for the VCI connector to communicate with X-431 Diagun IV.

  B.Reset: Includes all kinds of maintenance resets.

  C.One-click Update: lets you update diagnostic software and APK more efficiently.



2.Browser: built-in Wi-Fi module makes surfing on the internet freely.

3.Email: allows you to send and receive emails.

4.Settings: to configure your personalized X-431 Diagun IV through it.

5.Applications: other android based applications can be customized to install or uninstall.





Function menu:



Name                                                  Description

Diagnose                         Configures   X-431   Diagun   IV   to   operate   as   a diagnostic tool.



Special Function              To perform some maintenance items, including electronic throttle position reset, ABS bleeding, oil lamp reset etc.



Feedback Diagnosis        This option allows you to feed back the diagnostic reports/software bugs to us for troubleshooting and analysis.



Software Upgrade            To update vehicle diagnostic software. If you keep signed in, a pop-up message will appear on the screen once a newer version is detected.



Maintenance Help            To browse the FAQ, Quick Start Guide, User Manual and How-To videos.



Personal Center               To manage, activate your VCI connector, diagnostic report or personal information etc.







Vehicle connection:



The method used to connect the VCI connector to a vehicle’s DLC depends on the vehicle’s configuration as follows:

• A vehicle equipped with an OBD II management system supplies both communication and 12V power through a standardized DLC.

• A vehicle not equipped with an OBD II management system supplies communication through a DLC connection, and in some cases supplies 12V power through the cigarette lighter receptacle or a connection to the vehicle battery.



For non-OBDII vehicle,proceed as follows:

1. Locate vehicle’s DLC socket.

2. Plug the VCI connector into the vehicle’s DLC socket (It is suggested to use the OBD II extension cable to connect the VCI connector and DLC socket).

3. Choose one of the two ways to obtain power from:

   A. Power adaptor: Connect one end of the included power adaptor to DC IN port of X-431 Diagun IV handset, and the other end to AC outlet.

   B. Internal battery pack



For non-OBDII vehicle, proceed as follows:

1. Locate vehicle’s DLC socket.

2. Select the corresponding non-16pin connector.

3.  Plug the non-16pin end of the connector into the DLC socket, then connect the other end to the OBD I adaptor, and then tighten the captive screws.

4. Connect the other end of the adaptor to the included VCI connector.

5. To supply power to OBD I adaptor from:

   A. Cigarette Lighter cable(optional): Connect one end of the cigarette lighter cable to vehicle’s cigarette lighter receptacle, and the other end to the power jack of OBD I adaptor.

   B. Battery Clamps Cable(optional): Connect one end of the battery clamps



Reset function:



The Reset section is specially designed to provide you quick access to the vehicle systems for various scheduled service and maintenance performances. All resetting operations are driven by executive commands. Just by following the on-screen prompts to select appropriate execution options, input correct values or data, and perform necessary actions, the system will guide you through the complete performance.

The most commonly performed service functions contain:

• Oil Reset Service

• Steering Angle Calibration

• Electronic Parking Brake Reset

• Battery Register / Battery Maintenance

• ABS Bleeding

• Electronic Throttle Position Reset / Learn

• Diesel Particulate Filter (DPF) Regeneration

• Tire Pressure Monitor System Reset





Technical Parameters:



X-431 Diagun IV:

Operating system:Android 7.0

Processor:Quad core 1.1 GHz

Memory:1GB

Storage:16GB (Expandable up to 64GB)

LCD screen:5.5 inch IPS screen with a resolution of 1280 x 720 pixels

Camera:Front-facing 2MP camera + rear-facing 8MP camera

Battery:2500mh rechargeable polymer lithium battery

Connectivity:

*Wi-Fi: WLAN 802.11b/g/n

*Bluetooth: Bluetooth 4.1

Working temperature:0℃ ~ 45℃

Storage temperature:-10℃ ~ 50℃



VCI connector:

Working voltage:9~18V

Working temperature:-10℃~55℃

Storage temperature:-20℃~70℃

Relative humidity:20%~90%





Package List:



X-431 Diagun IV handset

VCI connector(Bluetooth connector)

Password envelope

Power adaptor







FAQ





1. How to save power?

    Please turn off the screen while X-431 Diagun IV keeps idle.

    Set a shorter standby time.

    Decrease the brightness of the screen.

    If WLAN connection is not required, please turn it off.

    Disable GPS function if GPS service is not in use.



2. What should I do in case I forgot the screen lock?

You can set screen lock as pattern or password. If you forgot the password, please consult your device provider or reset your device.

   Warning: Resetting may cause data loss. Before use, please make sure important data has been backed up.



3. How to do if the system runs slow?

In this case, please do the followings:

> Check all running applications and stop the unnecessary applications (Steps: Settings -> Apps -> Running -> Tap the desired application and then tap “Stop”).

> Check all installed applications, remove the unnecessary applications (Steps: Settings -> Apps -> Downloaded -> Tap the desired application and then tap “Uninstall”).

If all steps mentioned above are finished and the system still works slowly. Please try to close the system and reboot your X-431 Diagun IV.



4. How to reset X-431 Diagun IV?

   Resetting may cause data loss. Before doing so, please make sure important data and information has been backed up.

Do the following to reset X-431 Diagun IV:

1. Tap “Settings” --> “Back & Reset”;

2. Tap “Factory data reset”;

3. Tap “Reset tablet”;

4. Tap “Clear all data” to start resetting until the tool automatically reboots.



After-sales Service and warranty

Shipping Warranty:

We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.


DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Singpost/HongKong Airmail: 7- 20 working days. At most 45 days.

If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email: Contact us

Warrany Policy:

Problem Details Warranty Time Treatment Responsibility for Charge Remark
Quality Problem within 7 days after receiving package Buyer: Submit a complaint(Mail to sales360diag@hotmail.com ) and Return the items to Seller's assigned address by EMS or Post. Return Ship cost: Seller Any costs because of customer's wrong operation leads to return will be responsible by the buyers.
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 8-14 days after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 15 days to 1 year after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: Repair it. Repair Charge: Seller
Replace Parts Charge: Buyer
Lost in the delivery 30 days after shipping Buyer: Submit proof to seller New Product Cost: Seller
Seller: Contact carrier to ask for Claimant and arrange another shipment to buyer Resend Ship Cost: Seller
Customs Problem 30 days after shipping Buyer: Finish customs clearance when import Customs duties or agent fees: Buyer
Seller: Try to help buyer to finish customs clearance but not responsible on this.
Delivery Problems:
broken,incomplete,
wrong address
within 7 days after receiving package Buyer: Report to Seller,and sumbit Complaint to Carrier (DHL,TNT,UPS,EMS,etc..) in 7 days to get a Complaint number and send the number to Seller.After the seller's perpmit,return the full package in good condition to assigned address by EMS or Post. Caution: The Carrier will not accept Complaint after 7 days. Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: ask for compensation as per the Complaint number from Carrier ,not responsible for any losses after 7 days. Repair Charge: Seller
Replacement Charge: Buyer
Received wrong Items within 3 days after receiving package Buyer: Report to Seller,and return the full package in good condition to assigned address by EMS or Post in 3 days Return Ship cost: Seller
Seller: Arrange shipment for the correct items Resend ship cost: Seller
Man-made Damage: such as update machine online, dismantle the equipment, and so on within 1 year Buyer: Report to Seller,and return the items for repairing to assigned address by EMS or Post Return Ship cost: Buyer
Resend ship cost: Buyer
Repair Charge: Buyer
Replacement Charge: Buyer
Note: 1. Warranty Policy only protects Main parts.Other parts are out of our warranty policy.
2. Before return,please confirm with us. we will give you a shipping address once confirmming the problem. Buyer will be responsible for any risks or costs without our permission.
3. Buyer needs return the items by cheaper EMS or Post, or we can't get them because of restrict Customs Policy.
4. The Warranty Policy fits for all products except some products which state the warranty specially in description.


Warranty Item

Main Unit for Equipment 1 year warrnaty
Machine peripheral equipments and wire No warranty
Car diagnostic laptop 3 months
Data Hard Disk No warranty
Car software No warranty
Consumables No warranty



Technical Service:

1. If you have technical problem with the product you received from us, please contact us online or by email: Contact us

2. Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software from this link:  http://www.360diag.net/plus/list.php?tid=7, install it on your computer, then give us ID and password for remote help.
