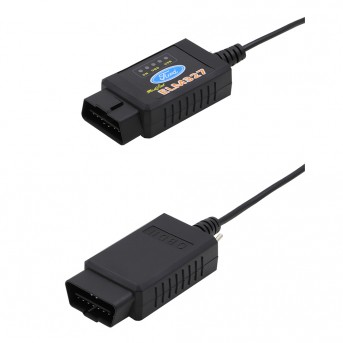

ELM327 USB FTDI PIC18F25K80 Chip ELMconfig Code Reader for Ford HS CAN/MS CAN Forscan ELM 327 OBDII Diagnostic Tool

USB Version

:SC03-A01
:
:
$12.00
:
Buy It Now

Details

ELM327 USB FTDI chip for Ford with HS CAN/MS CAN switch


Note:

USB version:  HS CAN/MS CAN switch +  FTDI chip
Bluetooth version: HS CAN/MS CAN switch+ No  FTDI chip
Support language:English,Germany,Greek,Spanish,French,Serbian.

HTB1W9vmOVXXXXXnXFXXq6xXFXXXo


*If the CD is broken during the shippment,   we will send the software link or software to you/your email. Please understand.
*This ELM327 only supports 12v Cars(including petrol and diesel cars),can't support for 24V or 15V vehicles.
*Please use 16pin OBD II adapter  cars,we dont suggest to use it   on  non-16pin cars,even with a xpin to 16Pin extended cable.


Technical Details:

1Latest ELM327 version for greater F.o.r.d compatibility
2Manufactured modification to include a switch to connect to different CAN buses
3Designed for FORScan software
4Compatible with software venders; FORScan, Elmconfig, FF2 and FoCCCus, plus more
4MS CAN bus and HS CAN bus support
5Drivers and instructions included

Product Introduction:

One ELM327 OBDII OBD2 USB with switch. Designed for communicating with F.o.r.d, for Mazda, for Lincoln and for Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular
OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.

Basic Features:

Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models

Pin Configurations:

Switch position one: HS CAN - Occupies pins 6 and 14
Switch position two: MS CAN - Occupies pins 3 and 11

Supported Software:

FORScan
Elmconfig
FoCCCus
FF2
Plus more

Modified EML:

Please note that many F.o.r.d and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN
is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.
ELM327 supports HS CAN from the stock, because for Ford HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.

Supported Vehicles:

All for Ford, for Mazda, for Lincoln, for Mercury vehicles that can be addressed using an ELM via an OBDII connector.

Supported Protocols:

1. for FORD
for FORD HS CAN
for FORD MS CAN

2.OBD-II Protocols:
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
   *default settings(user adjustable)

Other Details:

Cables fully tested on supported model before shipping.
No responsibility can be accepted for any damage caused by the lead.

Packing List:

1 * ELM327 OBD2 diagnostic interface
