CS602 Color Screen Codescan OBDII EOBD Scanner

CS602 Codescan OBDII EOBD Scanner

:SE08
:
:

Special Price: $68.0015% 15%

Regular Price: $79.99

:
Buy It Now
CS602 Color Screen Codescan OBDII EOBD ScannerCS602 Color Screen Codescan OBDII EOBD Scanner
Move your mouse over image or click to enlarge
CS602 Color Screen Codescan OBDII EOBD Scanner CS602 Color Screen Codescan OBDII EOBD Scanner CS602 Color Screen Codescan OBDII EOBD Scanner CS602 Color Screen Codescan OBDII EOBD Scanner CS602 Color Screen Codescan OBDII EOBD Scanner CS602 Color Screen Codescan OBDII EOBD Scanner CS602 Color Screen Codescan OBDII EOBD Scanner CS602 Color Screen Codescan OBDII EOBD Scanner

Details





CS602 Codescan OBDII EOBD Scanner is specially designed to work with all OBD II compliant vehicles, including Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all American, Asian and European vehicles.



CS602 Codescan OBDII EOBD Scanner

CS602 Codescan Function list:


1. Retrieve and erase trouble codes;
2. View freeze frame data;
3. View live data with graph;
4. I/M Readiness test;
5. O2 sensor monitor test;
6. On board monitor test;
7. DTC lookup
8. Record and playback history data



CS602 Codescan Feature & Functions:

1. Works on all 1996 and later OBDII compliant US, European and Asian vehicles;
2. Support all 10 OBDII test modes, including the latest SOA mode;
3. Support diagnostic protocol including SAE J1850 PWM/VPW, ISO 9141-2, ISO 14230-4(KWP), ISO15765-4(11bit and 29bit CAN)
5. Uses 2.8' color LCD display;
6. Retrieves generic codes and manufacturer specific and resets monitors;
7. View freeze frame data;
8. View live PCM datastream;
9. Graphs live datastream;
10. Read live O2 sensors test data;
11. Read vehicle information(VIN, CID and CVN)
12. Record and playback history data;
13. Build in OBDII DTC lookup libray.



CS602 Color Screen Codescan OBDII EOBD Scanner language available:

English
français
español
Deutsch
italiano

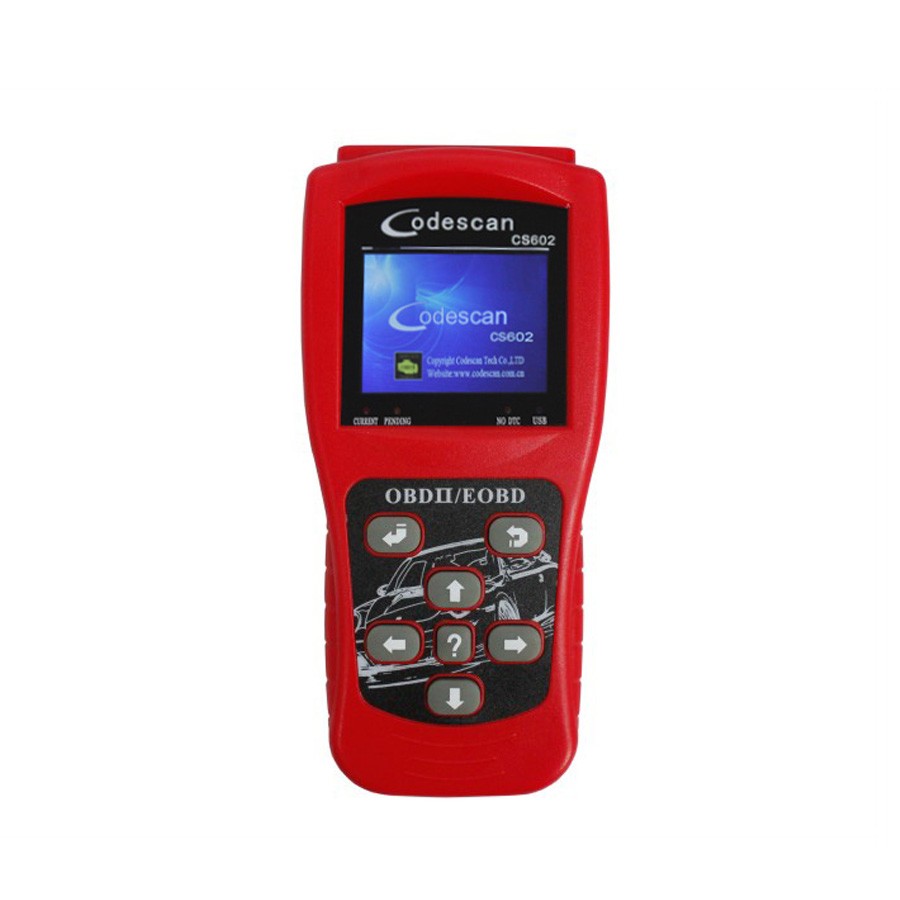

 CS602 outline:

1. Cable with OBDII connector--Connect CS602 to the vehicle'data link connector;
2. LCD Display--Indicate test result;
3. Exit Button--Return to previous menu;
5/7 Right/Left Buttons--Move cursor right or left for selection;Or turn page up or down when more than one page is displayed;
4/6 Up/Down Buttons--Move cursor up or down for selection;
8. USB Port--Connect CS602 to computer for update online;
9. Enter Button--confirm a selection(or action) from a menu list.
10. Help Button--Show help information for user;
11. Power Port--Power supply of 12V.
A Red LED indicator lamp--confirmed DTC; When it displays"Confirmed DTC", the red indicator lamp will light on;
B Yellow LED indicator lamp--Pending DTC; When it not sure or unknown DTC, the yellow indicator lamp will light on;
C Green LED indicator lamp--No DTC; When they are no DTC, the green indicator lamp will light on;
D Blue LED indicator lamp--USB; Dispaly the status of usb communication when updating.




Specification:

1) Screen: 2.8” TFT 262K true color, 320*240 QVGA LCD display
2) Input voltage range: 8~32V
3) Operating current: <100mA@
4) Power consumption: <1.2W (Typical)
5) Operating temperature: 32°F~122°F / 0
6) Storage tempetature: -4°F~158°F / -20°C ~70°C @
7) Outline dimension: 4.7’*3.2’*1.0’ / 121*82*26 mm LWH
8) Weight : <17.6 oz (500g)




Vehicle coverage:
The CS602 is specially designed to work with all OBD II compliant vehicles, including Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all American, Asian and European vehicles.
A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label, which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate “OBD II Certified”. Additionally, Government regulations mandate that all OBD II compliant vehicles must have a “common” sixteen-pin Data Link Connector (DLC).
For the vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

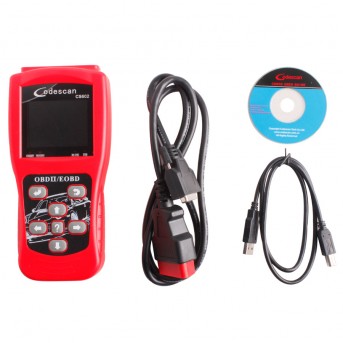

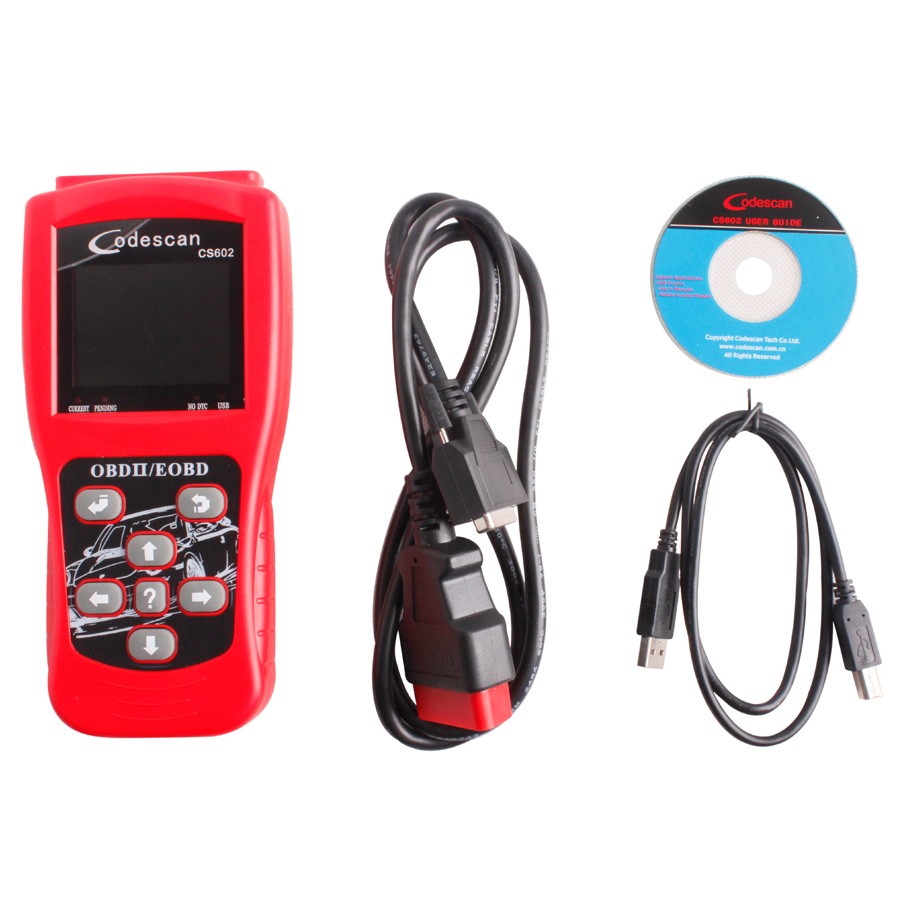

CS602 Codescan Package including:

1pc x CS602 Main Unit
1pc x USB Cable
1pc x OBD2 Cable
1pc x CD









After-sales Service and warranty

Shipping Warranty:

We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.


DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Singpost/HongKong Airmail: 7- 20 working days. At most 45 days.

If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email: Contact us

Warrany Policy:

Problem Details Warranty Time Treatment Responsibility for Charge Remark
Quality Problem within 7 days after receiving package Buyer: Submit a complaint(Mail to sales360diag@hotmail.com ) and Return the items to Seller's assigned address by EMS or Post. Return Ship cost: Seller Any costs because of customer's wrong operation leads to return will be responsible by the buyers.
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 8-14 days after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Seller
Seller: If can not repair,exchange a new one (Items must be in new condition with original packaging and accessories.) Repair Charge: Seller
Replace Parts Charge: Seller
within 15 days to 1 year after receiving package Buyer: Submit a complaint and Return the items to assigned address by EMS or Post for repairing Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: Repair it. Repair Charge: Seller
Replace Parts Charge: Buyer
Lost in the delivery 30 days after shipping Buyer: Submit proof to seller New Product Cost: Seller
Seller: Contact carrier to ask for Claimant and arrange another shipment to buyer Resend Ship Cost: Seller
Customs Problem 30 days after shipping Buyer: Finish customs clearance when import Customs duties or agent fees: Buyer
Seller: Try to help buyer to finish customs clearance but not responsible on this.
Delivery Problems:
broken,incomplete,
wrong address
within 7 days after receiving package Buyer: Report to Seller,and sumbit Complaint to Carrier (DHL,TNT,UPS,EMS,etc..) in 7 days to get a Complaint number and send the number to Seller.After the seller's perpmit,return the full package in good condition to assigned address by EMS or Post. Caution: The Carrier will not accept Complaint after 7 days. Return Ship cost: Buyer
Resend ship cost: Buyer
Seller: ask for compensation as per the Complaint number from Carrier ,not responsible for any losses after 7 days. Repair Charge: Seller
Replacement Charge: Buyer
Received wrong Items within 3 days after receiving package Buyer: Report to Seller,and return the full package in good condition to assigned address by EMS or Post in 3 days Return Ship cost: Seller
Seller: Arrange shipment for the correct items Resend ship cost: Seller
Man-made Damage: such as update machine online, dismantle the equipment, and so on within 1 year Buyer: Report to Seller,and return the items for repairing to assigned address by EMS or Post Return Ship cost: Buyer
Resend ship cost: Buyer
Repair Charge: Buyer
Replacement Charge: Buyer
Note: 1. Warranty Policy only protects Main parts.Other parts are out of our warranty policy.
2. Before return,please confirm with us. we will give you a shipping address once confirmming the problem. Buyer will be responsible for any risks or costs without our permission.
3. Buyer needs return the items by cheaper EMS or Post, or we can't get them because of restrict Customs Policy.
4. The Warranty Policy fits for all products except some products which state the warranty specially in description.


Warranty Item

Main Unit for Equipment 1 year warrnaty
Machine peripheral equipments and wire No warranty
Car diagnostic laptop 3 months
Data Hard Disk No warranty
Car software No warranty
Consumables No warranty
